The System 28 Basic Welding Table Series was created with Fine Detail Applications in Mind.

The Siegmund System 28 Basic Tables are constructed from through Hardened Steel to provide you with a Table of Superior Quality and Performance. All System 28 feature the Latest Upgrades in Aesthetics, Versatility, and Durability.

Specs and Features

of the System 28 Basic Series Welding Tables

Specs & Features
of the System 28
Basic Series
Welding Tables

Welding Table Specs and Features:

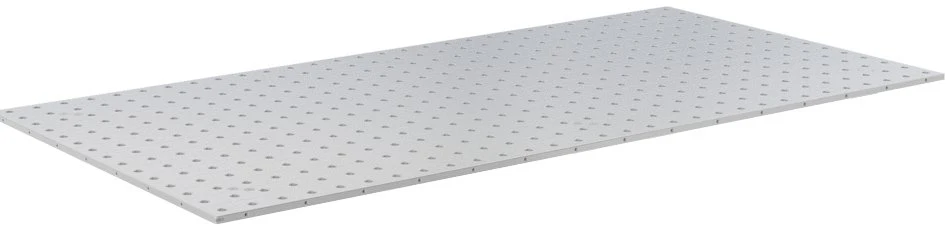

Overall Tabletop Size: 3,000 x 1,500 x 25mm (118" x 59" x 0.98")
Welding Table Series: Basic Series
Welding Table Material Thickness: Approx. 24.5 – 27mm (0.96" - 1.06")
Welding Table Material Type and Finish: High Quality S355J2+N Steel
Official Welding Table Part No.: 4-281040
Borehole: Ø 28mm (1.10")
Grid: Grid lines in a distance of 100x100mm (3.96" x 3.96") help you to arrange your accessories.
Approximate Table Weight: 2,300 lbs. / 1,043 kg.
Ribbing and Holes: The desk top has no ribbing and is milled on 5 sides. The table has thread holes on all sides. (It is possible to fixate stops on the sides of the table in distances of 200 mm by M12 thread holes.)

Welding Table Leg Options

Part Numbers, Specs and Pricing

Welding Table Leg Options
Part Numbers, Specs and Pricing

Siegmund Welding Table Leg Options Chart

Leg Type	Item No.	Capacity Per Leg	Leg Height	Table Height	Cost Per Leg
1. Standard Leg	161856	2,200 lbs. / 1,000 kg	32" / 815 mm	33.4" / 850 mm	Included
2. Height Adjustable Leg	4-160877.XX	2,200 lbs. / 1,000 kg	21.6" - 37.4"/ 550-950 mm	23.6"-39.3"/ 600-1,000mm	$102
3. Leg with Casters and Locking Brakes	4-161855.XX	440 lbs. / 200 kg	32"/ 815 mm	33.4"/ 850 mm	$114
4. Height Adjustable Leg with Casters and Locking Brakes	4-160879.XX	440 lbs./ 200 kg	23.6"-35.4"/ 600-900 mm	/ 650-950 mm	$169
5. Floor Anchoring Legs	4-160874.XX	2,200 lbs. / 1,000 kg	32" / 815 mm	33.4"/ 850 mm	$98

Siegmund System 28 Welding Table Leg Options - Full Specifications

1. Standard Siegmund Leg(s)

Item No.: 161856
Leg Height: 32" / 815mm
Table Height: 33.4" / 850mm
Fine Adjustment: 1.96" / 50mm
Capacity Per Table Leg: 2,200 lbs.
Cost Per Leg: $0 (Included with Welding Table as a Standard)
Cost Per 6 Leg Set: $0 (Included with Welding Table as a Standard)

2. Height Adjustable Siegmund Leg(s)

Item No.: 4-160877.XX
Leg Height (Adjustable): 21.65" - 37.4" / 550mm - 950mm
Table Height (Adjustable): 23.6" - 39.37" / 600mm - 1,000mm
Fine Adjustment: 1.57" / 40mm
Capacity Per Table Leg: 2,200 lbs.
Cost Per Leg: $102
Cost Per 6 Leg Set: $612

3. Siegmund Leg(s) with Casters and Locking Brakes

Item No.: 4-161855.XX
Leg Height: 32" / 815mm
Table Height: 33.4" / 850mm
Fine Adjustment: 1.96" / 50mm
Capacity Per Table Leg: 440 lbs.
Cost Per Leg: $114
Cost Per 6 Leg Set: $684

4. Height Adjustable Leg(s) with Casters and Locking Brakes

Item No.: 4-160879.XX
Leg Height (Adjustable): 23.6" - 35.4" / 600mm - 900mm
Table Height (Adjustable): 25.6" - 37.4" / 650mm - 950mm
Fine Adjustment: 1.57" / 40mm
Capacity Per Table Leg: 440 lbs.
Cost Per Leg: $169
Cost Per 6 Leg Set: $1,014

5. Siegmund Leg(s) for Floor Anchoring

Item No.: 4-160874.XX
Leg Height: 32" / 815mm
Table Height: 33.4" / 850mm
Fine Adjustment: 1.96" / 50mm
Capacity Per Table Leg: 2,200 lbs.
Cost Per Leg: $98
Cost Per 6 Leg Set: $588

System 28 Accessory Sets

The Most Popular Siegmund Accessory Bundles

System 28
Accessory Sets
The Most Popular Siegmund Accessory Bundles

Set 1.1 for System 28 (32 Piece) - 28mm Bored Hole Accessories (Item No. 4-283100.1) - Siegmund Welding Tables and Fixtures USA - A Division of Quantum Machinery Group

Sold out

Featured Siegmund Videos

of the System 28 Welding Tables

Featured Siegmund Videos
of the System 28 Welding Tables

Impact Test Standard Weld Table vs Siegmund Weld Table

Why Our Welding Tables are Plasma Nitrided

The Strength of a Siegmund Welding Table

"You Can Produce Everything..."

This Month's

Featured Siegmund Welders

This Month's
Featured Siegmund Welders

Greg from Red Beard's Garage

Red Beard’s Garage is world famous and has over 430,000+ Youtube Subscribers!
Red Beard (Greg) and his team builds all types of Go-Karts and definitely have a blast doing it - so be sure to follow their channel on Youtube. Red Beard’s Garage solely trusts Quantum Machinery and Siegmund to supply and support all of their Welding Table and Fixturing needs!
(There is bound to be something that will “tickle your fancy”! )

Jeff Lutz (Lutz Race Cars) from Street Outlaws

Jeff Lutz (Lutzs Race Cars) from Street Outlaws is world famous and has over 850,000+ Instagram Followers and over 850,000+ Facebook Fans and is currently filming with his Siegmund table on the Discover Channel! When he received his Siegmund Welding Table and Accessories from us, he had nothing but the best things to say, "Wow it is amazing!" and after spending a few weeks with it, Jeff wrote on his instagram that his Siegmund Welding Table makes fixturing everything so much easier for him and his team!

Here is a video of Jeff Lutz in a drag race, for your own entertainment!

Contact a Siegmund Expert

Feel free to contact us today to place an order or let us know
if you have any questions about any Siegmund's Products.

Contact a Siegmund Expert

Feel free to contact us today to place an order or let us know if you have any questions about any Siegmund's Products.

Contact our team of Factory Trained, In-House Siegmund U.S.A. Experts for all of your Siegmund Inquiries and questions! You can also place your order online or over the phone.

Phone: (704)703-9400
Email: Sales@WeldingTablesAndFixtures.com

If you would like for us to contact you, simply fill out the form below and one of our Siegmund Experts will be in contact with you shortly.

Thanks!

Name This field is required

Company Name This field is required

Email This field is required

Phone Number This field is required

Address This field is required

Message This field is required

The System 28 "BASIC" Welding Table Series was created with Versatility and Strength in mind.

The video below displays the Toughness and Reliability of our System 28 Professional Extreme Series Welding Tables. Showing why they're completely unsurpassable in Strength.

Welding Table Leg Options(Part Numbers, Specs and Pricing):

Standard Siegmund Leg(s)

Item No.: 161856
Leg Height: 32" / 815mm
Table Height: 33.4" / 850mm
Fine Adjustment: 1.96" / 50mm
Capacity Per Table Leg: 2,200 lbs.
Cost Per Leg: $0 (Included with Welding Table as a Standard)
Cost Per 6 Leg Set: $0 (Included with Welding Table as a Standard)

Height Adjustable Siegmund Leg(s)

Item No.: 4-160877.XX
Leg Height (Adjustable): 21.65" - 37.4" / 550mm - 950mm
Table Height (Adjustable): 23.6" - 39.37" / 600mm - 1,000mm
Fine Adjustment: 1.57" / 40mm
Capacity Per Table Leg: 2,200 lbs.
Cost Per Leg: $76
Cost Per 6 Leg Set: $456

Siegmund Leg(s) with Casters and Locking Brakes

Item No.: 4-161855.XX
Leg Height: 32" / 815mm
Table Height: 33.4" / 850mm
Fine Adjustment: 1.96" / 50mm
Capacity Per Table Leg: 440 lbs.
Cost Per Leg: $85
Cost Per 6 Leg Set: $510

Height Adjustable Siegmund Leg(s) with Casters and Locking Brakes

Item No.: 4-160879.XX
Leg Height (Adjustable): 23.6" - 35.4" / 600mm - 900mm
Table Height (Adjustable): 25.6" - 37.4" / 650mm - 950mm
Fine Adjustment: 1.57" / 40mm
Capacity Per Table Leg: 440 lbs.
Cost Per Leg: $127
Cost Per 6 Leg Set: $762

Siegmund Leg(s) for Floor Anchoring

Item No.: 4-160874.XX
Leg Height: 32" / 815mm
Table Height: 33.4" / 850mm
Fine Adjustment: 1.96" / 50mm
Capacity Per Table Leg: 2,200 lbs.
Cost Per Leg: $89
Cost Per 6 Leg Set: $534

Featured Metric Series Weld Tables

4-281040: Siegmund 3,000x1,500mm "BASIC" System 28 Welding Table
