The System 28 Basic Welding Table Series was created with Fine Detail Applications in Mind.


The Siegmund System 28 Basic Tables are constructed from through Hardened Steel to provide you with a Table of Superior Quality and Performance. All System 28 feature the Latest Upgrades in Aesthetics, Versatility, and Durability.

\n
\n

Specs and Features

of the System 28 Basic Series Welding Tables

\n
\n

Specs & Features
of the System 28
Basic Series
Welding Tables

\n

Welding Table Specs and Features:

\n
    \n
  • Overall Tabletop Size: 3,000 x 1,500 x 25mm (118\" x 59\" x 0.98\")
    • \n
  • Welding Table Series: Basic Series
    • \n
  • Welding Table Material Thickness: Approx. 24.5 – 27mm (0.96\" - 1.06\")
    • \n
  • Welding Table Material Type and Finish: High Quality S355J2+N Steel
    • \n
  • Official Welding Table Part No.: 4-281040
    • \n
  • Borehole: Ø 28mm (1.10\")
    • \n
  • Grid: Grid lines in a distance of 100x100mm (3.96\" x 3.96\") help you to arrange your accessories.
    • \n
  • Approximate Table Weight: 2,300 lbs. / 1,043 kg.
    • \n
  • Ribbing and Holes: The desk top has no ribbing and is milled on 5 sides. The table has thread holes on all sides. (It is possible to fixate stops on the sides of the table in distances of 200 mm by M12 thread holes.)\n
    • \n
\n
\"\"
\n
\n

Welding Table Leg Options

Part Numbers, Specs and Pricing

\n
\n

Welding Table Leg Options
Part Numbers, Specs and Pricing

\"\"
\n

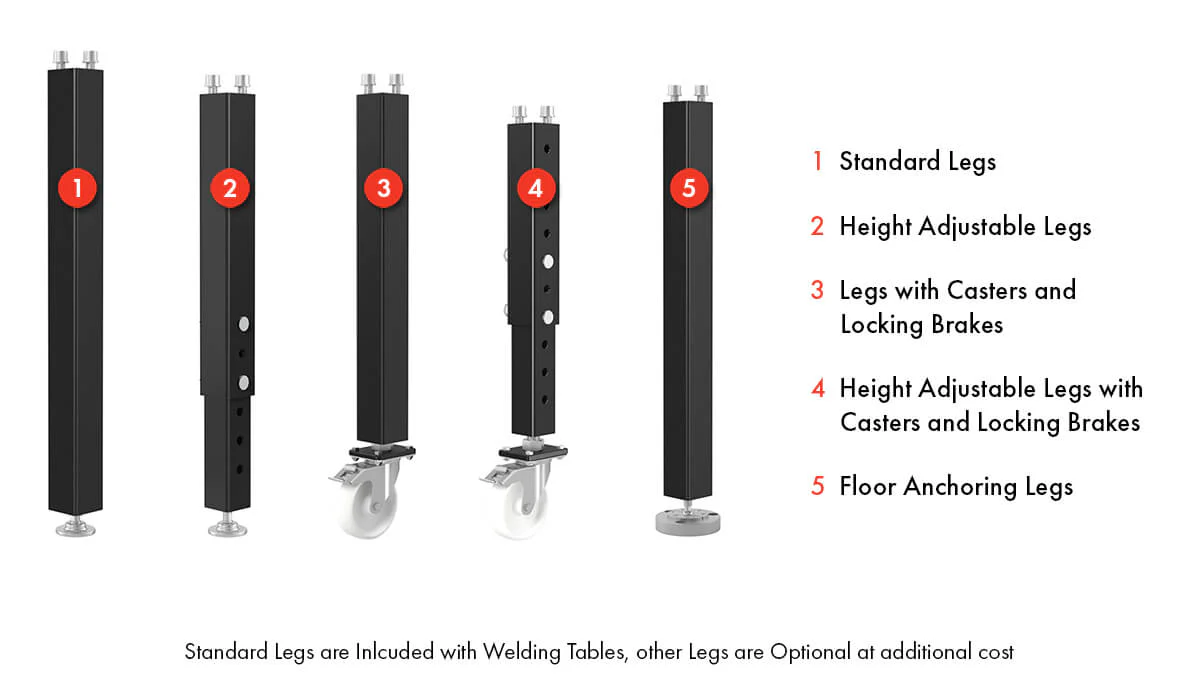

Siegmund Welding Table Leg Options Chart

Leg Type Item No. Capacity Per Leg Leg Height Table Height Cost Per Leg

1. Standard Leg

161856

2,200 lbs. / 1,000 kg

32\" / 815 mm

33.4\" / 850 mm

Included

2. Height Adjustable Leg

4-160877.XX

2,200 lbs. / 1,000 kg

21.6\" - 37.4\"/ 550-950 mm

23.6\"-39.3\"/ 600-1,000mm

$102

3. Leg with Casters and
Locking Brakes

4-161855.XX

440 lbs. / 200 kg

32\"/ 815 mm

33.4\"/ 850 mm

$114

4. Height Adjustable Leg
with Casters and Locking Brakes

4-160879.XX

440 lbs./ 200 kg

23.6\"-35.4\"/ 600-900 mm

/ 650-950 mm

$169

5. Floor Anchoring Legs

4-160874.XX

2,200 lbs. / 1,000 kg

32\" / 815 mm

33.4\"/ 850 mm

$98

Siegmund System 28 Welding Table Leg Options - Full Specifications

\n
\n

1. Standard Siegmund Leg(s)

  • Item No.: 161856
  • Leg Height: 32\" / 815mm
  • Table Height: 33.4\" / 850mm
  • Fine Adjustment: 1.96\" / 50mm
  • Capacity Per Table Leg: 2,200 lbs.
  • Cost Per Leg: $0 (Included with Welding Table as a Standard)
  • Cost Per 6 Leg Set: $0 (Included with Welding Table as a Standard)
\n
\n
\n

2. Height Adjustable Siegmund Leg(s)

  • Item No.: 4-160877.XX
  • Leg Height (Adjustable): 21.65\" - 37.4\" / 550mm - 950mm
  • Table Height (Adjustable): 23.6\" - 39.37\" / 600mm - 1,000mm
  • Fine Adjustment: 1.57\" / 40mm
  • Capacity Per Table Leg: 2,200 lbs.
  • Cost Per Leg: $102
  • Cost Per 6 Leg Set: $612
\n
\n
\n

3. Siegmund Leg(s) with Casters and Locking Brakes

  • Item No.: 4-161855.XX
  • Leg Height: 32\" / 815mm
  • Table Height: 33.4\" / 850mm
  • Fine Adjustment: 1.96\" / 50mm
  • Capacity Per Table Leg: 440 lbs.
  • Cost Per Leg: $114
  • Cost Per 6 Leg Set: $684
\n
\n
\n

4. Height Adjustable Leg(s) with Casters and Locking Brakes

  • Item No.: 4-160879.XX
  • Leg Height (Adjustable): 23.6\" - 35.4\" / 600mm - 900mm
  • Table Height (Adjustable): 25.6\" - 37.4\" / 650mm - 950mm
  • Fine Adjustment: 1.57\" / 40mm
  • Capacity Per Table Leg: 440 lbs.
  • Cost Per Leg: $169
  • Cost Per 6 Leg Set: $1,014
\n
\n
\n

5. Siegmund Leg(s) for Floor Anchoring

  • Item No.: 4-160874.XX
  • Leg Height: 32\" / 815mm
  • Table Height: 33.4\" / 850mm
  • Fine Adjustment: 1.96\" / 50mm
  • Capacity Per Table Leg: 2,200 lbs.
  • Cost Per Leg: $98
  • Cost Per 6 Leg Set: $588
