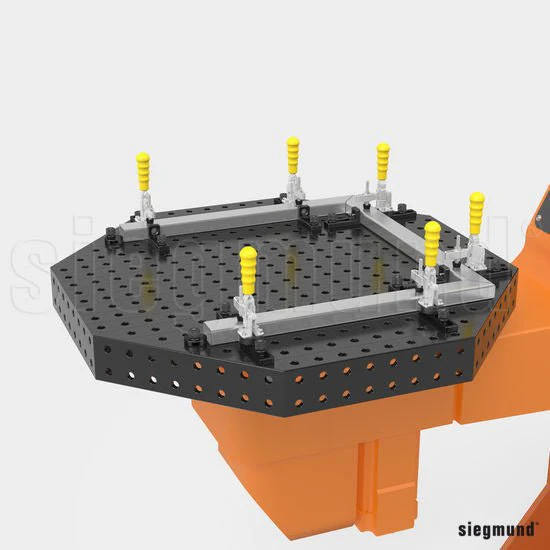

The Siegmund Octagonal Table SW 1600x150mm offers exceptional strength, stability, and accessibility for advanced robotic welding and automation setups. Its octagonal geometry provides full 360° access for manipulators and fixturing systems, while maintaining Siegmund’s industry-standard precision hole grid for accurate repeatability and workflow efficiency.
- Constructed from S355J2+N steel for superior load-bearing capacity and longevity.
- Plasma nitrided finish provides outstanding resistance to wear, spatter, and corrosion.
- Large 1,732mm (68.2" Inches) diameter working area supports heavy-duty assemblies.
- System 22 hole pattern ensures compatibility with all Siegmund accessories and clamps.

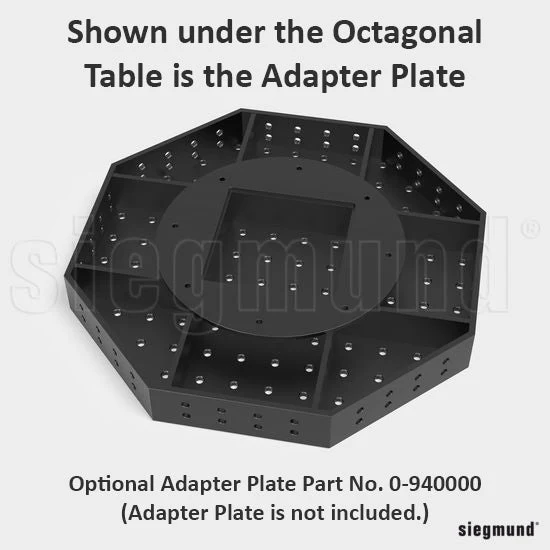

- Adapter plate interfaces available for positioners and robot integration.
- Custom hole layouts and mounting solutions available upon request.
Key Features:
- Octagonal layout enhances access and flexibility for robotic applications.
- Plasma nitrided surface ensures precise, durable, and low-maintenance operation.
- Massive 604 kg (1332.0 lbs.) construction guarantees unmatched rigidity and stability.
- System 22 compatibility delivers full accessory and tooling integration.
- Built for heavy fabrication, automation, and multi-axis positioning systems.
Specifications:
- Series: Siegmund System 22 Metric Series
- Length: 663mm (26.1" Inches)
- Width: 1600mm (63.0" Inches)
- Height: 150mm (5.9" Inches)
- Diameter: 1,732mm (68.2" Inches)
- Material: S355J2+N Steel
- Material Thickness: 18mm (0.71" Inches)
- Weight: 1,332.0 lbs. (604 kg.)
- Surface: Plasma Nitrided
Common Uses:
This Siegmund Octagonal Table is the preferred foundation for robotic welding cells, precision automation, and modular fabrication systems requiring large work envelopes and exact repeatability. Its balanced octagonal design allows manipulators and tooling to approach from any direction, reducing downtime and improving workflow precision in demanding production settings.
