\n The System 28 Basic Welding Table Series was created with Fine Detail Applications in Mind.
The System 28 Basic Welding Table Series was created with Fine Detail Applications in Mind.
The Siegmund System 28 Basic Tables are constructed from through Hardened Steel to provide you with a Table of Superior Quality and Performance. All System 28 tables feature the Latest Upgrades in Aesthetics, Versatility, and Durability.
\n
\n
Specs and Features
of the System 28 Basic Series Welding Tables
\n \n
Specs & Features
of the System 28
Basic Series
Welding Tables
\n
Welding Table Specs and Features:
\n- \n
- Overall Tabletop Size: 1,500 x 1,000 x 25mm (59\" x 39.37\" x 0.98\") \n
- Welding Table Series: Basic Series \n
- Welding Table Material Thickness: Approx. 24.5 – 27mm (0.96\" - 1.06\") \n
- Welding Table Material Type and Finish: High Quality S355J2+N Steel \n
- Official Welding Table Part No.: 4-281035 \n
- Borehole: Ø 28mm (1.10\") \n
- Grid: Grid lines in a distance of 100x100mm (3.96\" x 3.96\") help you to arrange your accessories. \n
- Approximate Table Weight: 820 lbs. / 370 kg. \n
- Ribbing and Holes: The desk top has no ribbing and is milled on 5 sides. The table has thread holes on all sides. (It is possible to fixate stops on the sides of the table in distances of 200 mm by M12 thread holes.)\n \n
\n
\n
Welding Table Leg Options
Part Numbers, Specs and Pricing
\n \n
Welding Table Leg Options
Part Numbers, Specs and Pricing
\n

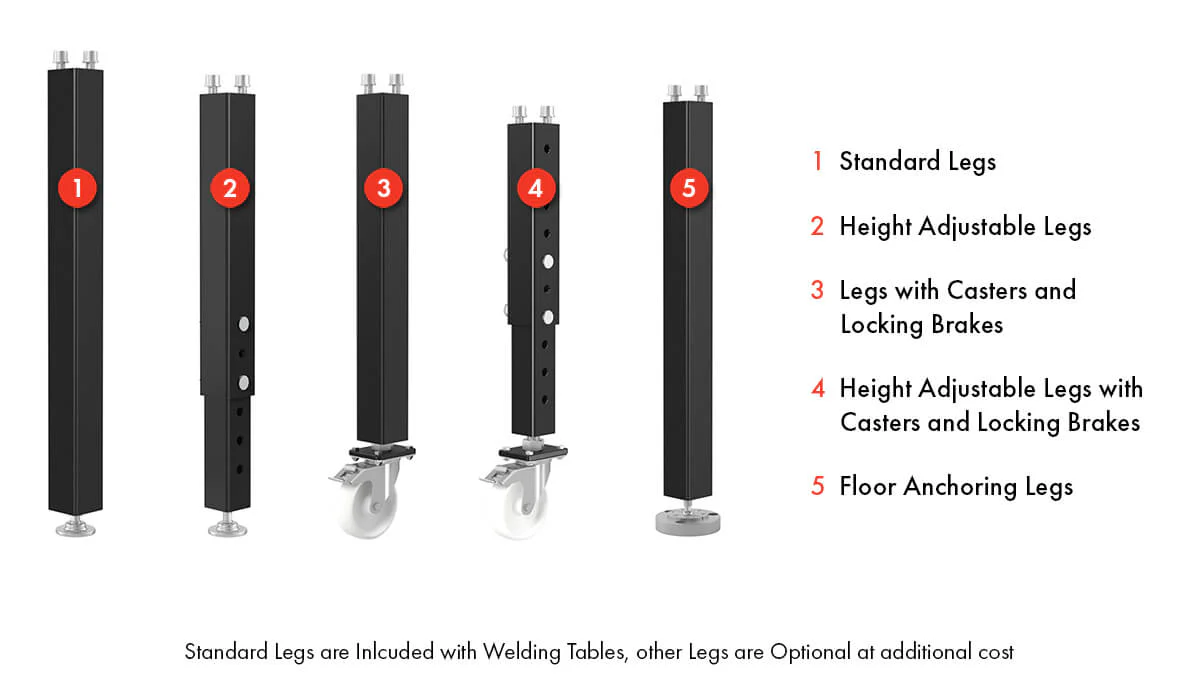

Siegmund Welding Table Leg Options Chart
| Leg Type | Item No. | Capacity Per Leg | Leg Height | Table Height | Cost Per Leg |
| 1. Standard Leg | 161856 | 2,200 lbs. / 1,000 kg | 32\" / 815 mm | 33.4\" / 850 mm | Included |
| 2. Height Adjustable Leg | 4-160877.XX | 2,200 lbs. / 1,000 kg | 21.6\" - 37.4\"/ 550-950 mm | 23.6\"-39.3\"/ 600-1,000mm | $102 |
| 3. Leg with Casters and | 4-161855.XX | 440 lbs. / 200 kg | 32\"/ 815 mm | 33.4\"/ 850 mm | $114 |
| 4. Height Adjustable Leg | 4-160879.XX | 440 lbs./ 200 kg | 23.6\"-35.4\"/ 600-900 mm | / 650-950 mm | $169 |
| 5. Floor Anchoring Legs | 4-160874.XX | 2,200 lbs. / 1,000 kg | 32\" / 815 mm | 33.4\"/ 850 mm | $98 |
Siegmund System 28 Welding Table Leg Options - Full Specifications
\n
\n
1. Standard Siegmund Leg(s)
- Item No.: 161856
- Leg Height: 32\" / 815mm
- Table Height: 33.4\" / 850mm
- Fine Adjustment: 1.96\" / 50mm
- Capacity Per Table Leg: 2,200 lbs.
- Cost Per Leg: $0 (Included with Welding Table as a Standard)
- Cost Per 4 Leg Set: $0 (Included with Welding Table as a Standard)
\n
\n
2. Height Adjustable Siegmund Leg(s)
- Item No.: 4-160877.XX
- Leg Height (Adjustable): 21.65\" - 37.4\" / 550mm - 950mm
- Table Height (Adjustable): 23.6\" - 39.37\" / 600mm - 1,000mm
- Fine Adjustment: 1.57\" / 40mm
- Capacity Per Table Leg: 2,200 lbs.
- Cost Per Leg: $102
- Cost Per 4 Leg Set: $408
\n
\n
3. Siegmund Leg(s) with Casters and Locking Brakes
- Item No.: 4-161855.XX
- Leg Height: 32\" / 815mm
- Table Height: 33.4\" / 850mm
- Fine Adjustment: 1.96\" / 50mm
- Capacity Per Table Leg: 440 lbs.
- Cost Per Leg: $114
- Cost Per 4 Leg Set: $456
\n
\n
4. Height Adjustable Leg(s) with Casters and Locking Brakes
- Item No.: 4-160879.XX
- Leg Height (Adjustable): 23.6\" - 35.4\" / 600mm - 900mm
- Table Height (Adjustable): 25.6\" - 37.4\" / 650mm - 950mm
- Fine Adjustment: 1.57\" / 40mm
- Capacity Per Table Leg: 440 lbs.
- Cost Per Leg: $169
- Cost Per 4 Leg Set: $676
\n
\n
5. Siegmund Leg(s) for Floor Anchoring
- Item No.: 4-160874.XX
- Leg Height: 32\" / 815mm
- Table Height: 33.4\" / 850mm
- Fine Adjustment: 1.96\" / 50mm
- Capacity Per Table Leg: 2,200 lbs.
- Cost Per Leg: $98
- Cost Per 4 Leg Set: $392
\n
\n
System 28 Accessory Sets
The Most Popular Siegmund Accessory Bundles
\n \n
System 28
Accessory Sets
The Most Popular Siegmund Accessory Bundles
Sold out
Sold out
Sold out
Sold out
Sold out
\n
\n
Contact a Siegmund Expert
Feel free to contact us today to place an order or let us know if you have any questions about any Siegmund's Products.
\nContact our team of Factory Trained, In-House Siegmund U.S.A. Experts for all of your Siegmund Inquiries and questions! You can also place your order online or over the phone.
Phone: (704)703-9400
Email: [email protected]
