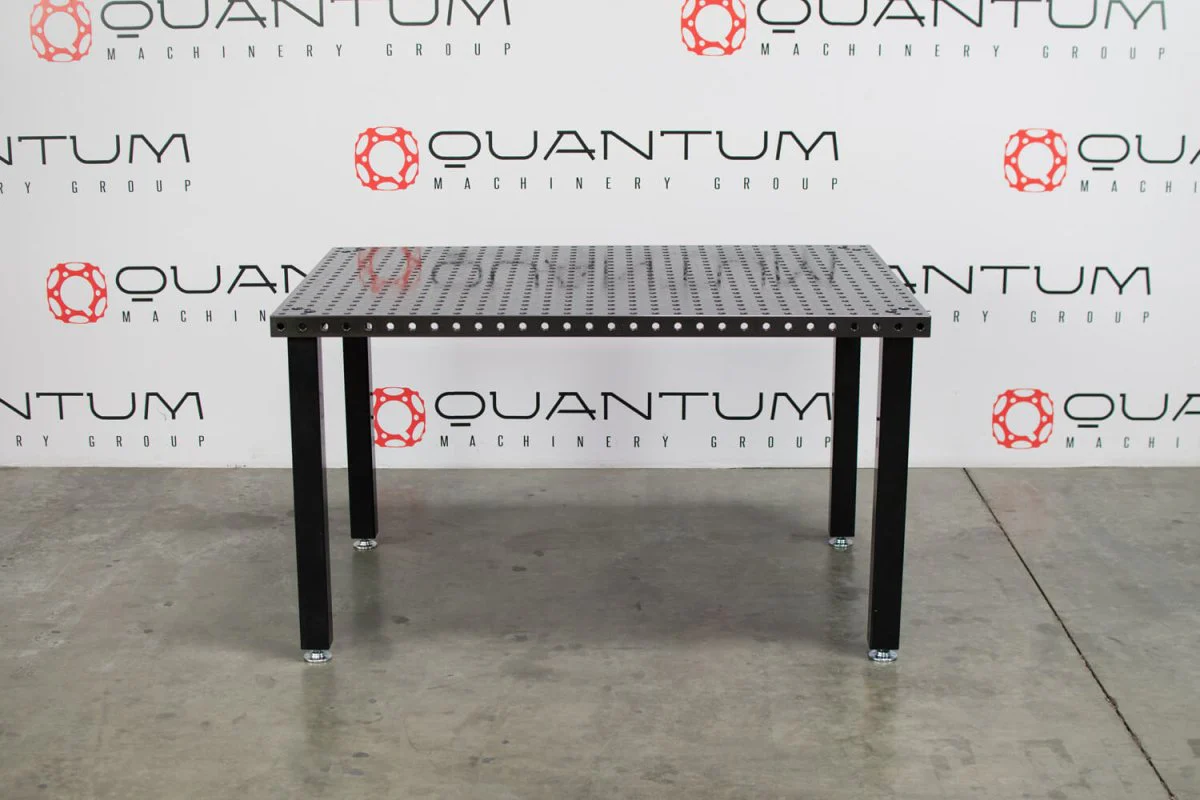

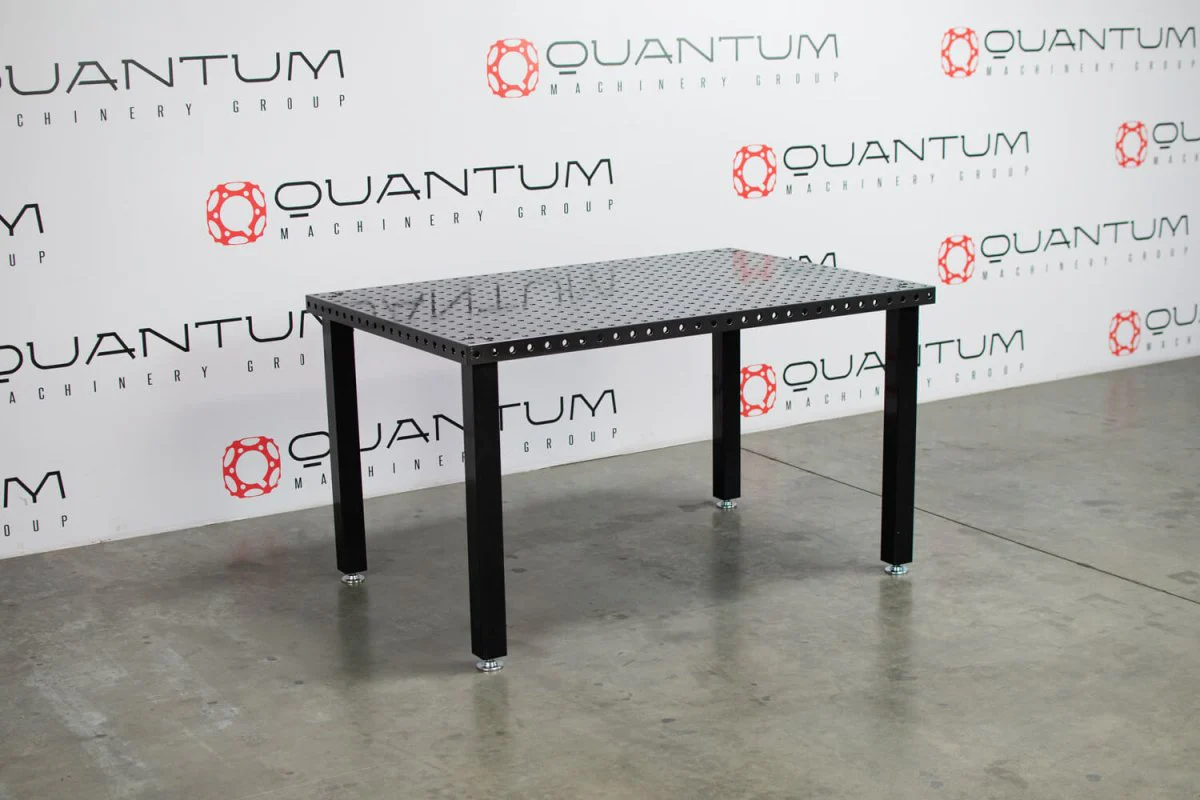

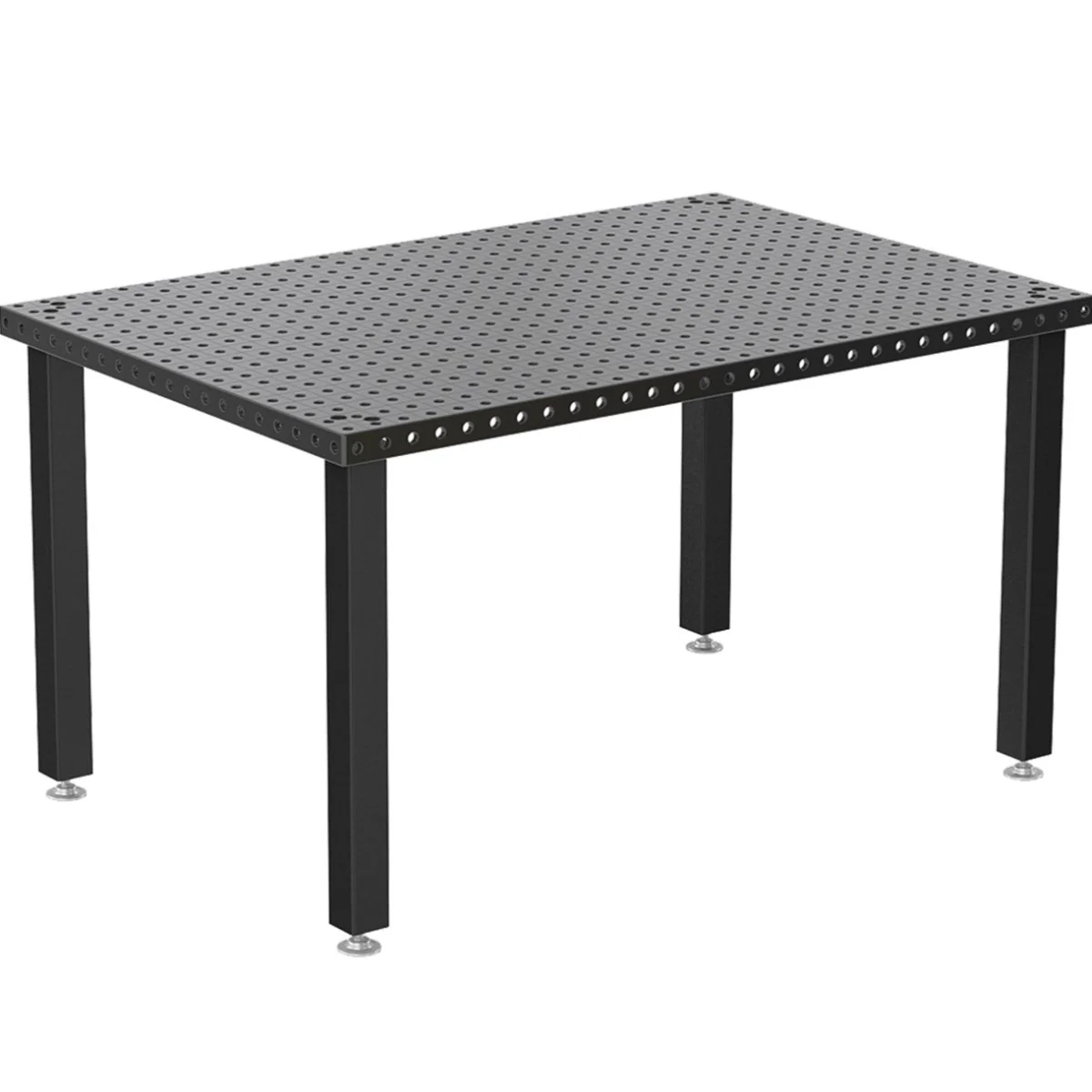

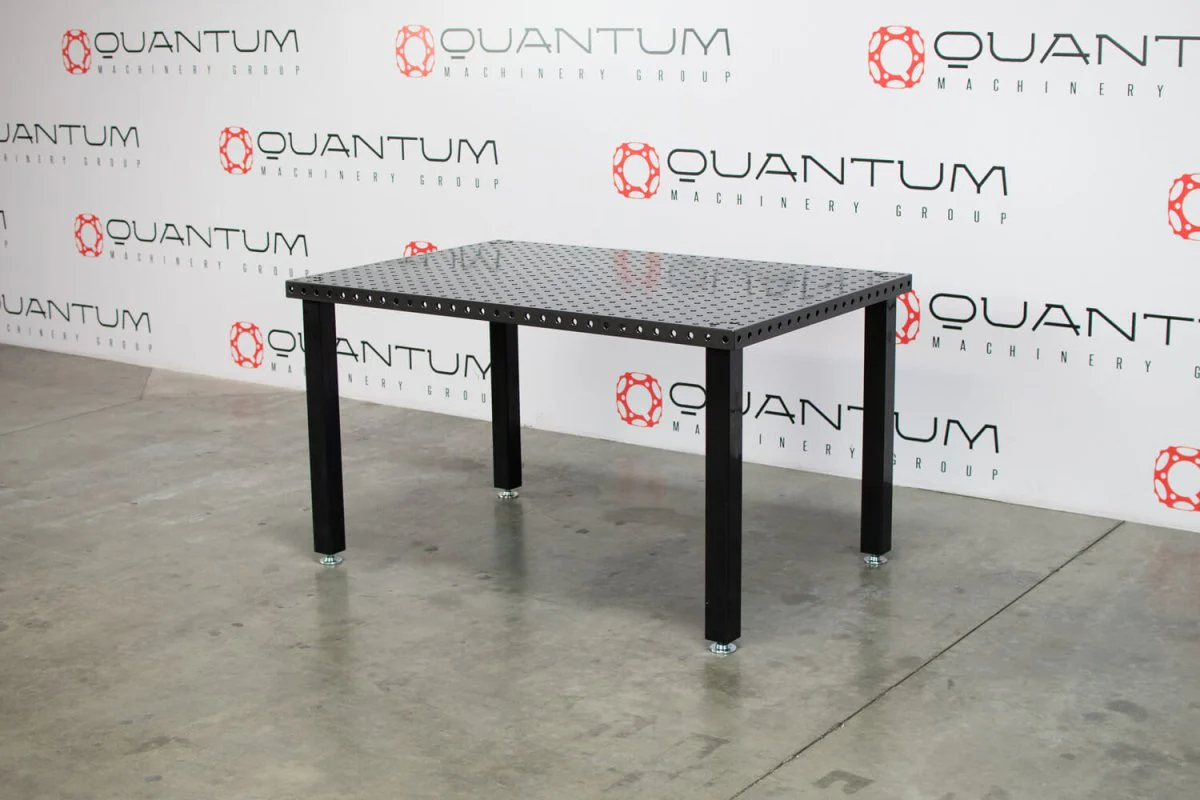

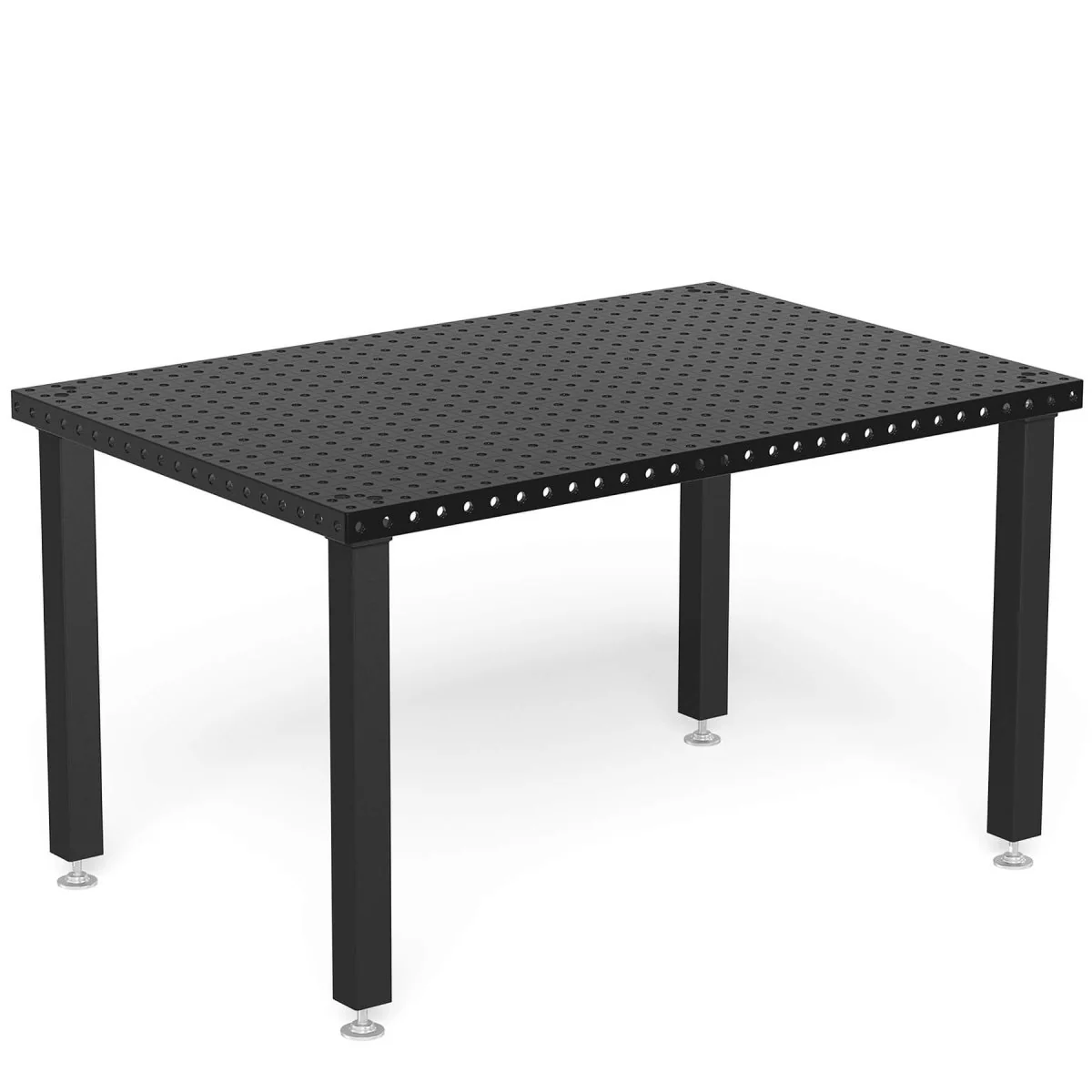

(Image is of a Siegmund System 16 BASIC Series, Welding Table with a Siegmund Accessory Kit. These items are not included. This is being shown as an example.)


\n

The System 16 Welding Table Series was created with Fine Detail Applications in Mind.

All System 16 Basic tables feature the latest upgrades in aesthetics, versatility, and durability.

Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.



\"\"

\"\"
  • The materials used are fundamental to the high level of hardness and long service life.
  • With a Siegmund® table, you will experience long-term savings, thanks to the high level of precision engineering, as well as the consistent superior quality.
  • Side surface of Professional Extreme 8.7 is made of specific basic material S355J2+N incl. plasma nitriding and BAR-coating.

\"\"
\n

\nSiegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.\n

\"\"

\n

\n

Specs and Features

of the System 16 Basic Series Welding Tables

\n
\n

Specs & Features
of the System 16
BASIC Series
Welding Tables


\"\"

\n
\n

Welding Table Specs and Features:

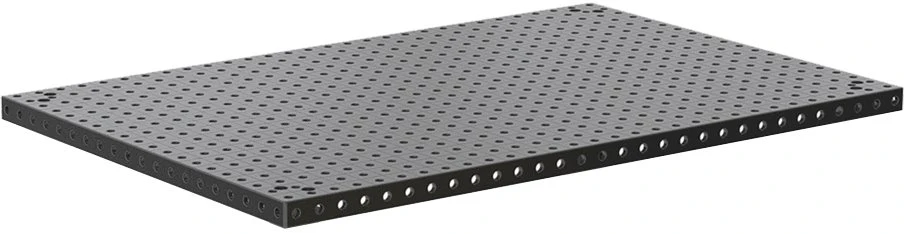

  • Overall Tabletop Size: 1,500x1000mm
  • Welding Table Series: System 16 Basic Series
  • Welding Table Material Thickness: Approx. 11.5-13 mm
  • Welding Table Material Type and Finish: High Quality S355J2+N Steel, Plasma Nitrided and BAR-Coated
  • Official Welding Table Part No.: 4-161035.P
  • Borehole: Ø 16mm
  • Grid: Grid lines in a distance of 50x50mm help you to arrange your accessories.
  • Approximate Table Weight: 537 lbs. / 244 kg.

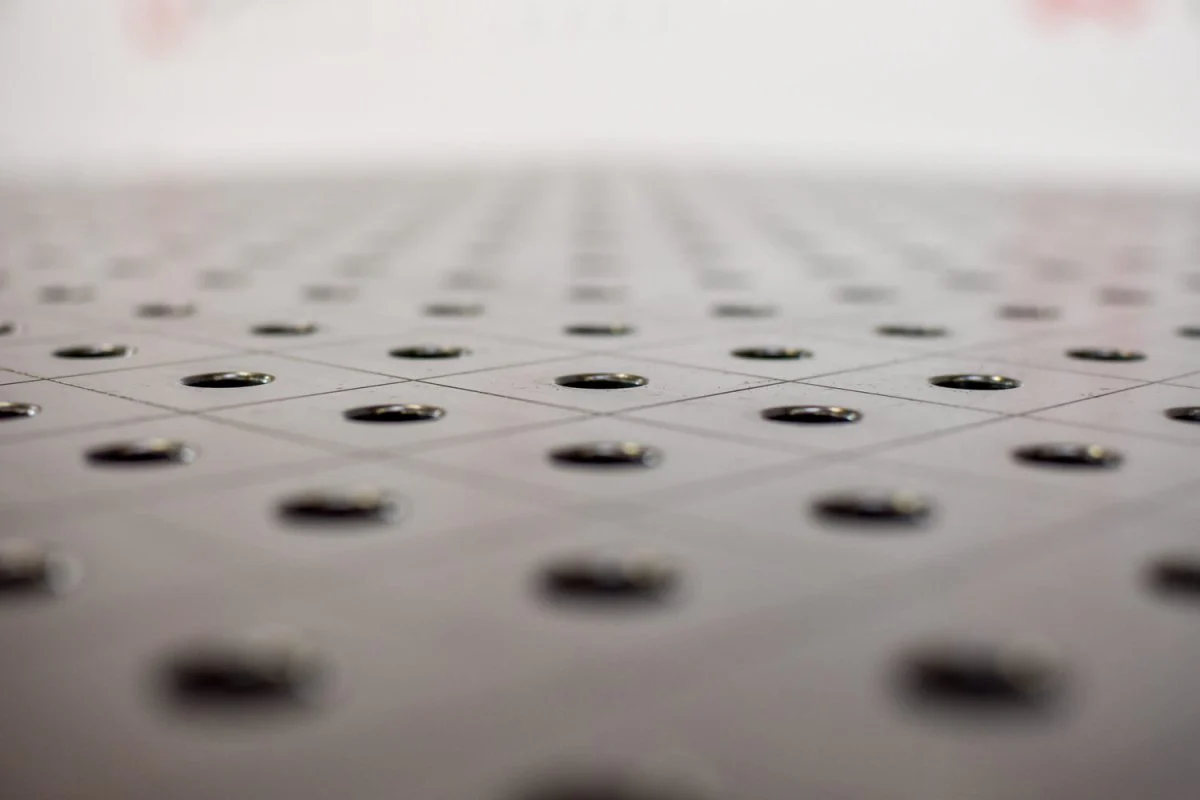

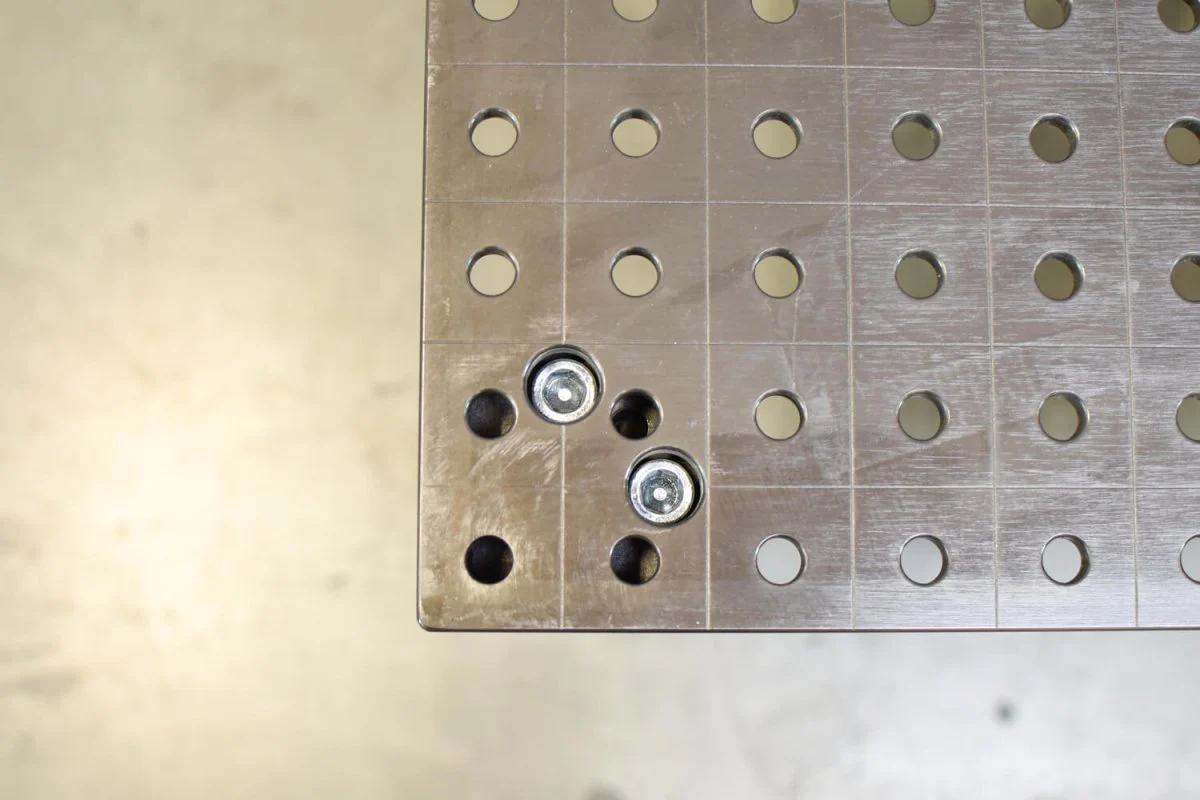

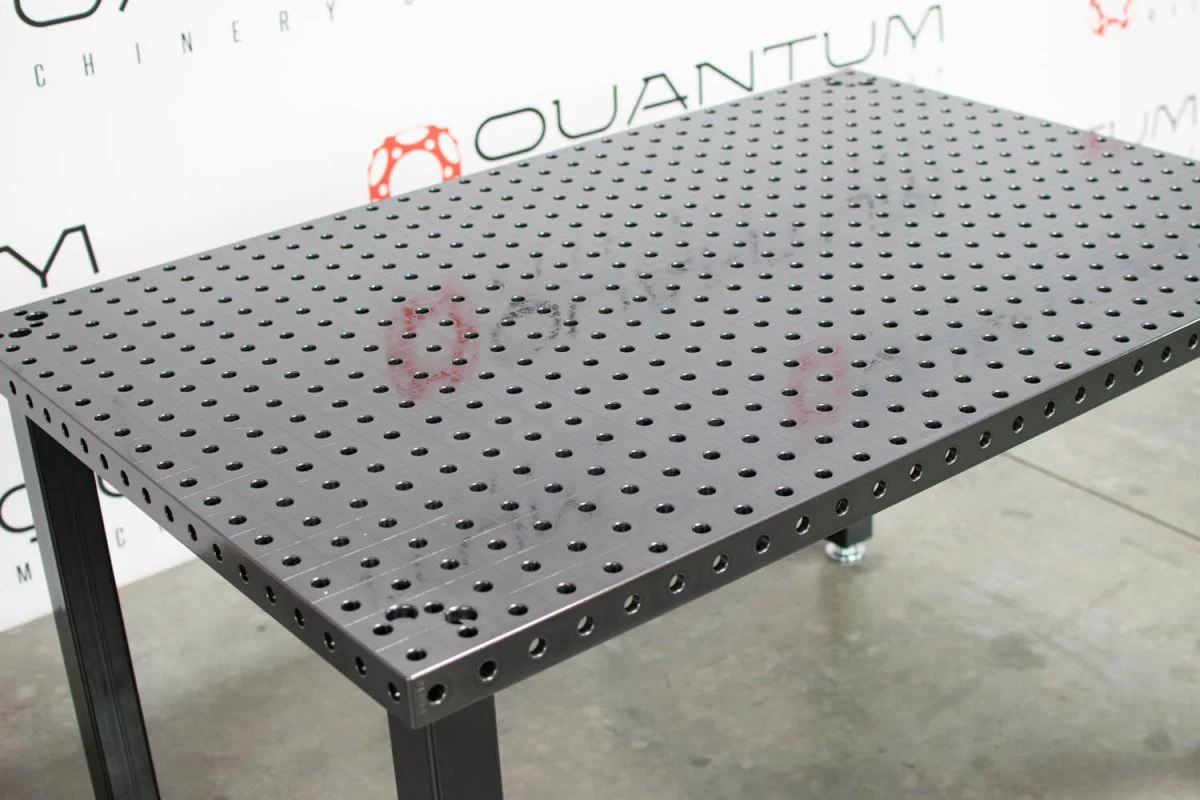

  1. Boreholes on the surface are in a 50X50 mm Grid Configuration.
  2. Borehole Ø 16 mm
  3. Through-hardened tool steel X8.7 + Plasma nitration
  4. Material thickness approx. 11,5 – 13 mm

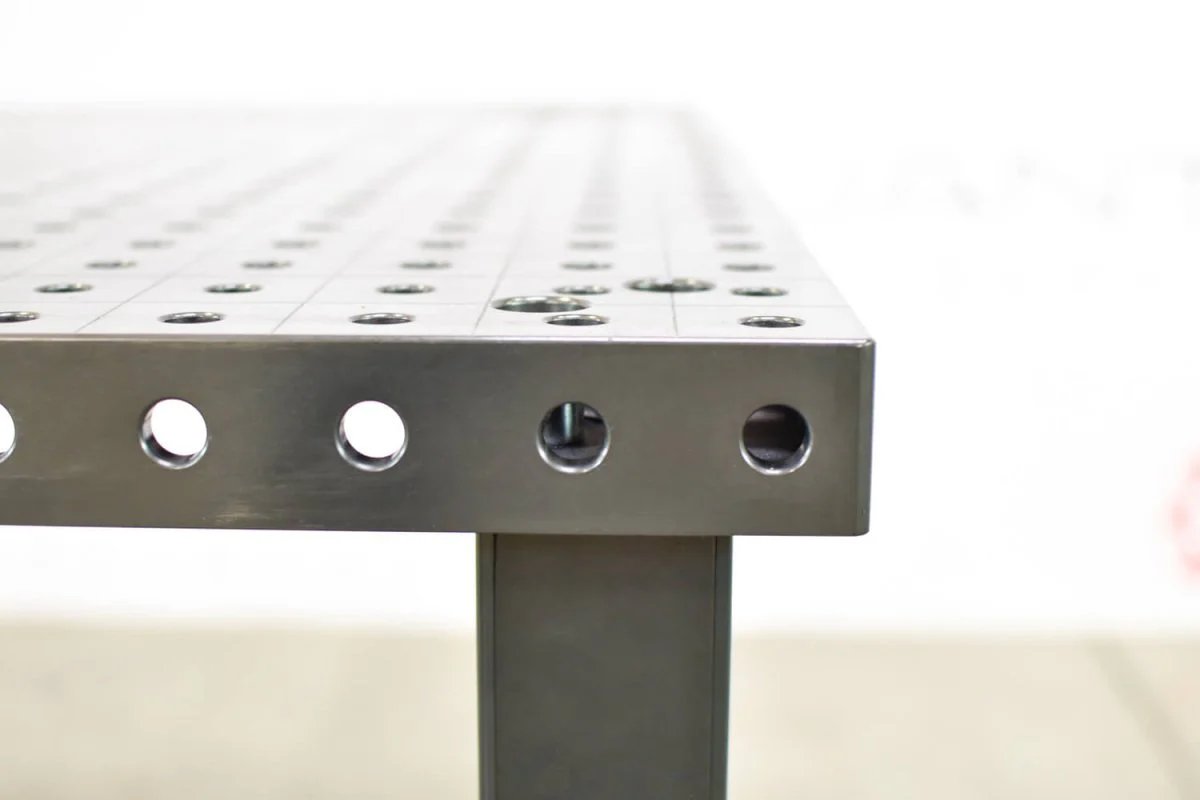

  5. M12-thread on 4 sides every 50 mm
  6. Rounded corners and edges
\n

\"\"

\n
\n

Welding Table Leg Options

Part Numbers, Specs and Pricing

\n
\n

Welding Table Leg Options
Part Numbers, Specs and Pricing


\"\"

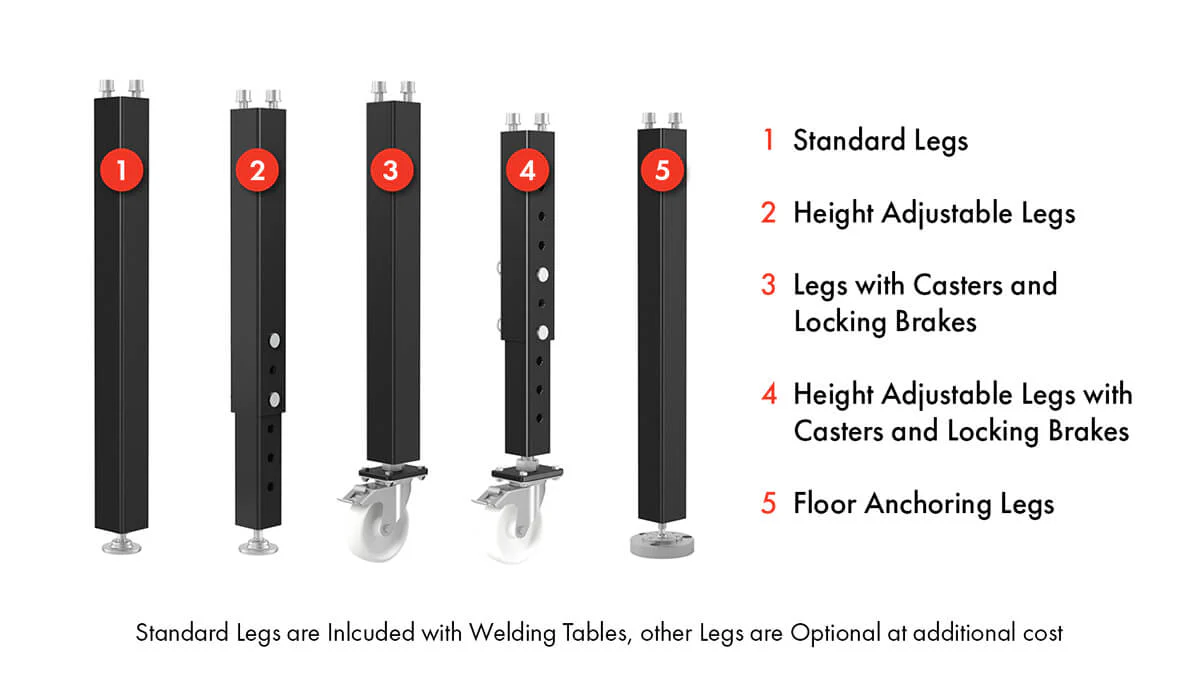

Siegmund Welding Table Leg Options Chart

Leg Type Item No. Capacity Per Leg Leg Height Table Height Cost Per Leg

1. Standard Leg

161856

2,200 lbs. / 1,000 kg

32\" / 815 mm

33.4\" / 850 mm

Included

2. Height Adjustable Leg

4-160877.XX

2,200 lbs. / 1,000 kg

21.6\" - 37.4\"/ 550-950 mm

23.6\"-39.3\"/ 600-1,000mm

$102

3. Leg with Casters and
Locking Brakes

4-161855.XX

440 lbs. / 200 kg

32\"/ 815 mm

33.4\"/ 850 mm

$114

4. Height Adjustable Leg
with Casters and Locking Brakes

4-160879.XX

440 lbs./ 200 kg

23.6\"-35.4\"/ 600-900 mm

25.5\"-37.4\"/ 650-950 mm

$169

5. Floor Anchoring Legs

4-160874.XX

2,200 lbs. / 1,000 kg

32\" / 815 mm

33.4\"/ 850 mm

$98


Siegmund System 16 Welding Table Leg Options - Full Specifications


\n
\n

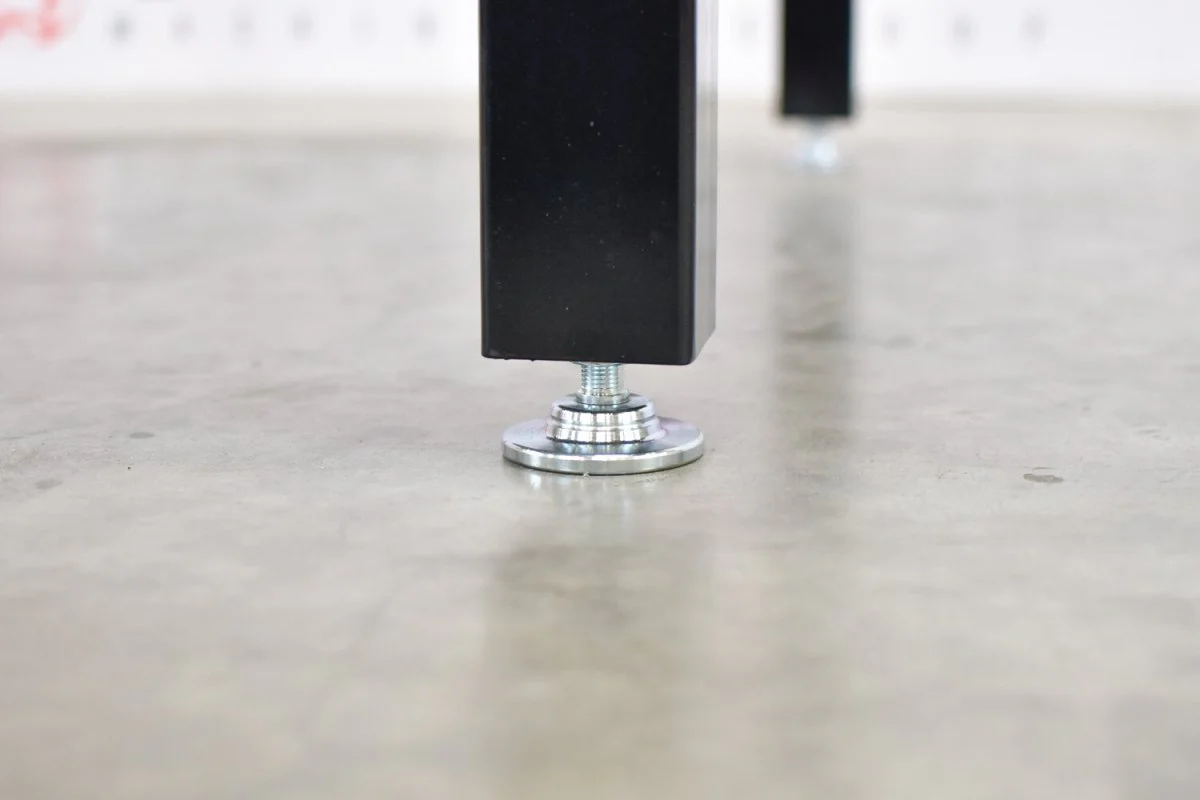

1. Standard Siegmund Leg(s)

    • Item No.: 161856
    • Leg Height: 32\" / 815mm
    • Table Height: 33.4\" / 850mm

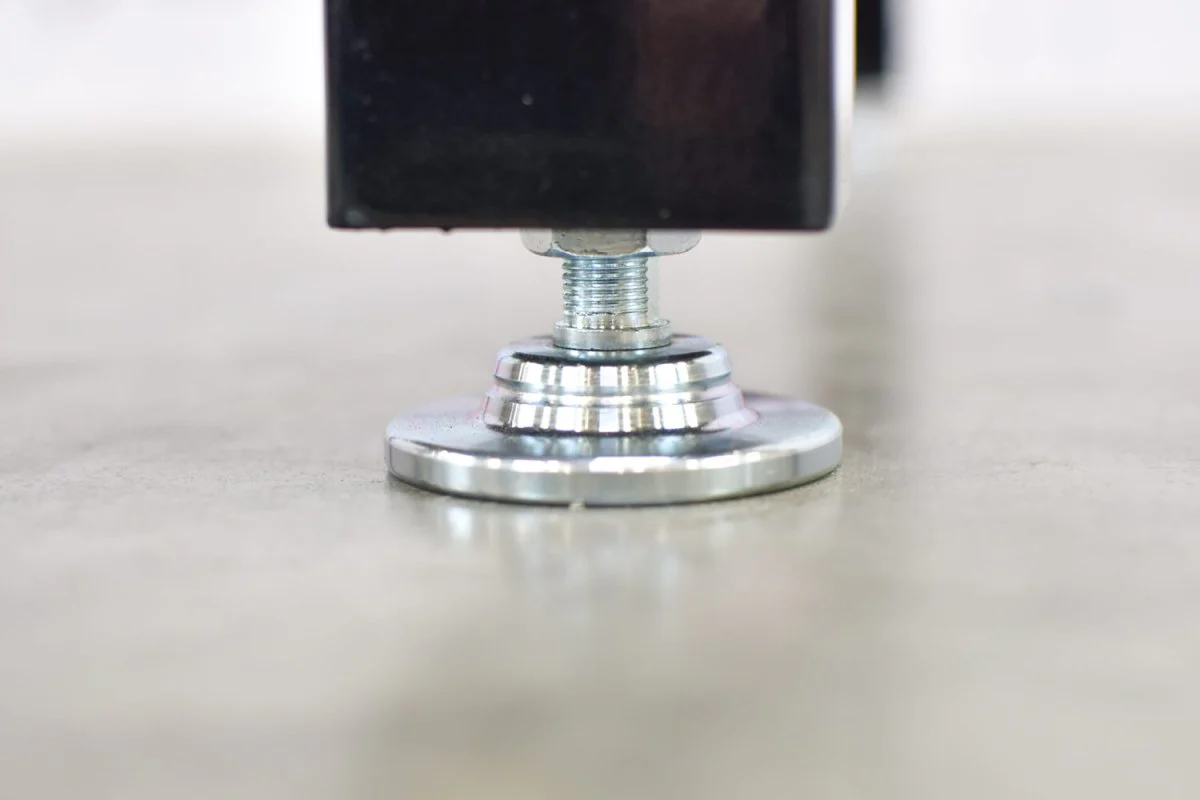

    • Fine Adjustment: 1.96\" / 50mm
    • Capacity Per Table Leg: 2,200 lbs.
    • Cost Per Leg: $0 (Included with Welding Table as a Standard)
    • Cost Per 4 Leg Set: $0 (Included with Welding Table as a Standard)
\n
\n
\n

2. Height Adjustable Siegmund Leg(s)

  • Item No.: 4-160877.XX
  • Leg Height (Adjustable): 21.65\" - 37.4\" / 550mm - 950mm
  • Table Height (Adjustable): 23.6\" - 39.37\" / 600mm - 1,000mm
  • Fine Adjustment: 1.57\" / 40mm
  • Capacity Per Table Leg: 2,200 lbs.
  • Cost Per Leg: $102
  • Cost Per 4 Leg Set: $408
\n
\n
\n

3. Siegmund Leg(s) with Casters and Locking Brakes

  • Item No.: 4-161855.XX
  • Leg Height: 32\" / 815mm
  • Table Height: 33.4\" / 850mm
  • Fine Adjustment: 1.18\" / 30mm
  • Capacity Per Table Leg: 440 lbs.
  • Cost Per Leg: $114
  • Cost Per 4 Leg Set: $456
\n
\n
\n

4. Height Adjustable Leg(s) with Casters and Locking Brakes

  • Item No.: 4-160879.XX
  • Leg Height (Adjustable): 23.6\" - 35.4\" / 600mm - 900mm
  • Table Height (Adjustable): 25.6\" - 37.4\" / 650mm - 950mm
  • Fine Adjustment: 1.18\" / 30mm
  • Capacity Per Table Leg: 440 lbs.
  • Cost Per Leg: $169
  • Cost Per 4 Leg Set: $676
\n
\n
\n

5. Siegmund Leg(s) for Floor Anchoring

    • Item No.: 4-160874.XX
    • Leg Height: 32\" / 815mm
    • Table Height: 33.4\" / 850mm
    • Fine Adjustment: 1.96\" / 50mm
    • Capacity Per Table Leg: 2,200 lbs.
    • Cost Per Leg: $98
    • Cost Per 4 Leg Set: $392
\n

\n
\n

System 16 Accessory Sets

The Most Popular Siegmund Accessory Bundles

\n
\n

System 16
Accessory Sets
The Most Popular Siegmund Accessory Bundles


\"Set

Sold out

Sold out
\"Set

Sold out

Sold out
\"Set

Sold out

\"\"

\n
\n

Featured Siegmund Videos

of the System 16 Welding Tables

\n
\n

Featured Siegmund Videos
of the System 16 Welding Tables


\n

Impact Test Standard Weld Table vs Siegmund Weld Table



\n

Why Our Welding Tables are Plasma Nitrided



\n

The Strength of a Siegmund Welding Table



\n

\"You Can Produce Everything...\"


\n
\n

This Month's

Featured Siegmund Welders

\n
\n

This Month's
Featured Siegmund Welders


Greg from Red Beard's Garage

Red Beard’s Garage is world famous and has over 410,000+ Youtube Subscribers!
Red Beard (Greg) and his team builds all types of Go-Karts and definitely have a blast doing it - so be sure to follow their channel on Youtube.
Red Beard’s Garage solely trusts Quantum Machinery and Siegmund to supply and support all of their Welding Table and Fixturing needs!
(There is bound to be something that will “tickle your fancy”! )


\n
\n


Jeff Lutz (Lutz Race Cars) from Street Outlaws

Jeff Lutz (Lutzs Race Cars) from Street Outlaws is world famous and has over 474,000+ Instagram Followers and over 467,000+ Facebook Fans and is currently filming with his Siegmund table on the Discover Channel! When he received his Siegmund Welding Table and Accessories from us, he had nothing but the best things to say, \"Wow it is amazing!\" and after spending a few weeks with it, Jeff wrote on his instagram that his Siegmund Welding Table makes fixturing everything so much easier for him and his team!


\"\"

\"\"

Here is a video of Jeff Lutz in a drag race, for your own entertainment!


\n
\n

Contact a Siegmund Expert

Feel free to contact us today to place an order or let us know
if you have any questions about any Siegmund's Products.

\n
\n
\n
Contact a Siegmund Expert
Feel free to contact us today to place an order or let us know if you have any questions about any Siegmund's Products.
\n

Contact our team of Factory Trained, In-House Siegmund U.S.A. Experts for all of your Siegmund Inquiries and questions! You can also place your order online or over the phone.

Phone: (704)703-9400
Email: [email protected]

Contact our team of Factory Trained, In-House Siegmund U.S.A. Experts for all of your Siegmund Inquiries and questions! You can also place your order online or over the phone.

Phone: (704)703-9400      Email: [email protected]


If you would like for us to contact you, simply fill out the form below and one of our Siegmund Experts will be in contact with you shortly.

Thanks!
This field is required
This field is required
This field is required
This field is required
This field is required
This field is required
","image":["/images/weldingtablesandfixturessupply.shop/images/product/4-161035-p-siegmund-1500x1000mm-basic-system-16-welding-table-1.jpg","/images/weldingtablesandfixturessupply.shop/images/product/4-161035-p-siegmund-1500x1000mm-basic-system-16-welding-table-2.jpg","/images/weldingtablesandfixturessupply.shop/images/product/4-161035-p-siegmund-1500x1000mm-basic-system-16-welding-table-3.jpg","/images/weldingtablesandfixturessupply.shop/images/product/4-161035-p-siegmund-1500x1000mm-basic-system-16-welding-table-4.jpg","/images/weldingtablesandfixturessupply.shop/images/product/4-161035-p-siegmund-1500x1000mm-basic-system-16-welding-table-5.jpg","/images/weldingtablesandfixturessupply.shop/images/product/4-161035-p-siegmund-1500x1000mm-basic-system-16-welding-table-6.jpg","/images/weldingtablesandfixturessupply.shop/images/product/4-161035-p-siegmund-1500x1000mm-basic-system-16-welding-table-7.jpg","/images/weldingtablesandfixturessupply.shop/images/product/4-161035-p-siegmund-1500x1000mm-basic-system-16-welding-table-8.jpg","/images/weldingtablesandfixturessupply.shop/images/product/4-161035-p-siegmund-1500x1000mm-basic-system-16-welding-table-9.jpg","/images/weldingtablesandfixturessupply.shop/images/product/4-161035-p-siegmund-1500x1000mm-basic-system-16-welding-table-10.jpg","/images/weldingtablesandfixturessupply.shop/images/product/4-161035-p-siegmund-1500x1000mm-basic-system-16-welding-table-11.jpg","/images/weldingtablesandfixturessupply.shop/images/product/4-161035-p-siegmund-1500x1000mm-basic-system-16-welding-table-12.jpg","/images/weldingtablesandfixturessupply.shop/images/product/4-161035-p-siegmund-1500x1000mm-basic-system-16-welding-table-13.jpg","/images/weldingtablesandfixturessupply.shop/images/product/4-161035-p-siegmund-1500x1000mm-basic-system-16-welding-table-14.jpg","/images/weldingtablesandfixturessupply.shop/images/product/4-161035-p-siegmund-1500x1000mm-basic-system-16-welding-table-15.jpg"],"sku":"4-161035-p-siegmund-1500x1000mm-basic-system-16-welding-table","brand":{"@type":"Brand","name":"Siegmund"},"offers":{"@type":"AggregateOffer","lowPrice":1392.3,"highPrice":3994,"priceCurrency":"USD","availability":"https://schema.org/InStock","url":"https://weldingtablesandfixturessupply.shop/products/4-161035-p-siegmund-1500x1000mm-basic-system-16-welding-table","offerCount":5}}
HomeStore

4-161035.P: Siegmund 1,500x1,000mm "BASIC" System 16 Welding Table

4-161035.P: Siegmund 1,500x1,000mm "BASIC" System 16 Welding Table


(Image is of a Siegmund System 16 BASIC Series, Welding Table with a Siegmund Accessory Kit. These items are not included. This is being shown as an example.)


The System 16 Welding Table Series was created with Fine Detail Applications in Mind.

All System 16 Basic tables feature the latest upgrades in aesthetics, versatility, and durability.

Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.




  • The materials used are fundamental to the high level of hardness and long service life.
  • With a Siegmund® table, you will experience long-term savings, thanks to the high level of precision engineering, as well as the consistent superior quality.
  • Side surface of Professional Extreme 8.7 is made of specific basic material S355J2+N incl. plasma nitriding and BAR-coating.


Siegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.



Specs and Features

of the System 16 Basic Series Welding Tables

Specs & Features
of the System 16
BASIC Series
Welding Tables



Welding Table Specs and Features:

  • Overall Tabletop Size: 1,500x1000mm
  • Welding Table Series: System 16 Basic Series
  • Welding Table Material Thickness: Approx. 11.5-13 mm
  • Welding Table Material Type and Finish: High Quality S355J2+N Steel, Plasma Nitrided and BAR-Coated
  • Official Welding Table Part No.: 4-161035.P
  • Borehole: Ø 16mm
  • Grid: Grid lines in a distance of 50x50mm help you to arrange your accessories.
  • Approximate Table Weight: 537 lbs. / 244 kg.
  1. Boreholes on the surface are in a 50X50 mm Grid Configuration.
  2. Borehole Ø 16 mm
  3. Through-hardened tool steel X8.7 + Plasma nitration
  4. Material thickness approx. 11,5 – 13 mm
  5. M12-thread on 4 sides every 50 mm
  6. Rounded corners and edges


Welding Table Leg Options

Part Numbers, Specs and Pricing

Welding Table Leg Options
Part Numbers, Specs and Pricing



Siegmund Welding Table Leg Options Chart

Leg Type Item No. Capacity Per Leg Leg Height Table Height Cost Per Leg

1. Standard Leg

161856

2,200 lbs. / 1,000 kg

32" / 815 mm

33.4" / 850 mm

Included

2. Height Adjustable Leg

4-160877.XX

2,200 lbs. / 1,000 kg

21.6" - 37.4"/ 550-950 mm

23.6"-39.3"/ 600-1,000mm

$102

3. Leg with Casters and
Locking Brakes

4-161855.XX

440 lbs. / 200 kg

32"/ 815 mm

33.4"/ 850 mm

$114

4. Height Adjustable Leg
with Casters and Locking Brakes

4-160879.XX

440 lbs./ 200 kg

23.6"-35.4"/ 600-900 mm

25.5"-37.4"/ 650-950 mm

$169

5. Floor Anchoring Legs

4-160874.XX

2,200 lbs. / 1,000 kg

32" / 815 mm

33.4"/ 850 mm

$98


Siegmund System 16 Welding Table Leg Options - Full Specifications


1. Standard Siegmund Leg(s)

    • Item No.: 161856
    • Leg Height: 32" / 815mm
    • Table Height: 33.4" / 850mm
    • Fine Adjustment: 1.96" / 50mm
    • Capacity Per Table Leg: 2,200 lbs.
    • Cost Per Leg: $0 (Included with Welding Table as a Standard)
    • Cost Per 4 Leg Set: $0 (Included with Welding Table as a Standard)

2. Height Adjustable Siegmund Leg(s)

  • Item No.: 4-160877.XX
  • Leg Height (Adjustable): 21.65" - 37.4" / 550mm - 950mm
  • Table Height (Adjustable): 23.6" - 39.37" / 600mm - 1,000mm
  • Fine Adjustment: 1.57" / 40mm
  • Capacity Per Table Leg: 2,200 lbs.
  • Cost Per Leg: $102
  • Cost Per 4 Leg Set: $408

3. Siegmund Leg(s) with Casters and Locking Brakes

  • Item No.: 4-161855.XX
  • Leg Height: 32" / 815mm
  • Table Height: 33.4" / 850mm
  • Fine Adjustment: 1.18" / 30mm
  • Capacity Per Table Leg: 440 lbs.
  • Cost Per Leg: $114
  • Cost Per 4 Leg Set: $456

4. Height Adjustable Leg(s) with Casters and Locking Brakes

  • Item No.: 4-160879.XX
  • Leg Height (Adjustable): 23.6" - 35.4" / 600mm - 900mm
  • Table Height (Adjustable): 25.6" - 37.4" / 650mm - 950mm
  • Fine Adjustment: 1.18" / 30mm
  • Capacity Per Table Leg: 440 lbs.
  • Cost Per Leg: $169
  • Cost Per 4 Leg Set: $676

5. Siegmund Leg(s) for Floor Anchoring

    • Item No.: 4-160874.XX
    • Leg Height: 32" / 815mm
    • Table Height: 33.4" / 850mm
    • Fine Adjustment: 1.96" / 50mm
    • Capacity Per Table Leg: 2,200 lbs.
    • Cost Per Leg: $98
    • Cost Per 4 Leg Set: $392

System 16 Accessory Sets

The Most Popular Siegmund Accessory Bundles

System 16
Accessory Sets
The Most Popular Siegmund Accessory Bundles


Set 1.1 for System 16 (28 Piece) - 16mm Bored Hole Accessories (Item No. 4-163100.1) - Siegmund Welding Tables and Fixtures USA - A Division of Quantum Machinery Group

Sold out

Sold out
Set 3.1 for System 16 (72 Piece) - 16mm Bored Hole Accessories (Item No. 4-163300.1) - Siegmund Welding Tables and Fixtures USA - A Division of Quantum Machinery Group

Sold out

Sold out
Set 5.1 for System 16 (117 Piece) - 16mm Bored Hole Accessories (Item No. 4-163500.1) - Siegmund Welding Tables and Fixtures USA - A Division of Quantum Machinery Group

Sold out


Featured Siegmund Videos

of the System 16 Welding Tables

Featured Siegmund Videos
of the System 16 Welding Tables


Impact Test Standard Weld Table vs Siegmund Weld Table



Why Our Welding Tables are Plasma Nitrided



The Strength of a Siegmund Welding Table



"You Can Produce Everything..."


This Month's

Featured Siegmund Welders

This Month's
Featured Siegmund Welders


Greg from Red Beard's Garage

Red Beard’s Garage is world famous and has over 410,000+ Youtube Subscribers!
Red Beard (Greg) and his team builds all types of Go-Karts and definitely have a blast doing it - so be sure to follow their channel on Youtube.
Red Beard’s Garage solely trusts Quantum Machinery and Siegmund to supply and support all of their Welding Table and Fixturing needs!
(There is bound to be something that will “tickle your fancy”! )




Jeff Lutz (Lutz Race Cars) from Street Outlaws

Jeff Lutz (Lutzs Race Cars) from Street Outlaws is world famous and has over 474,000+ Instagram Followers and over 467,000+ Facebook Fans and is currently filming with his Siegmund table on the Discover Channel! When he received his Siegmund Welding Table and Accessories from us, he had nothing but the best things to say, "Wow it is amazing!" and after spending a few weeks with it, Jeff wrote on his instagram that his Siegmund Welding Table makes fixturing everything so much easier for him and his team!




Here is a video of Jeff Lutz in a drag race, for your own entertainment!


Contact a Siegmund Expert

Feel free to contact us today to place an order or let us know
if you have any questions about any Siegmund's Products.

Contact a Siegmund Expert
Feel free to contact us today to place an order or let us know if you have any questions about any Siegmund's Products.

Contact our team of Factory Trained, In-House Siegmund U.S.A. Experts for all of your Siegmund Inquiries and questions! You can also place your order online or over the phone.

Phone: (704)703-9400
Email: [email protected]

Contact our team of Factory Trained, In-House Siegmund U.S.A. Experts for all of your Siegmund Inquiries and questions! You can also place your order online or over the phone.

Phone: (704)703-9400      Email: [email protected]


If you would like for us to contact you, simply fill out the form below and one of our Siegmund Experts will be in contact with you shortly.

Thanks!
This field is required
This field is required
This field is required
This field is required
This field is required
This field is required
Select Table Legs
From $1,392.30

Original: $3,978.00

-65%
4-161035.P: Siegmund 1,500x1,000mm "BASIC" System 16 Welding Table

$3,978.00

$1,392.30
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8
Product image 9
Product image 10
Product image 11
Product image 12

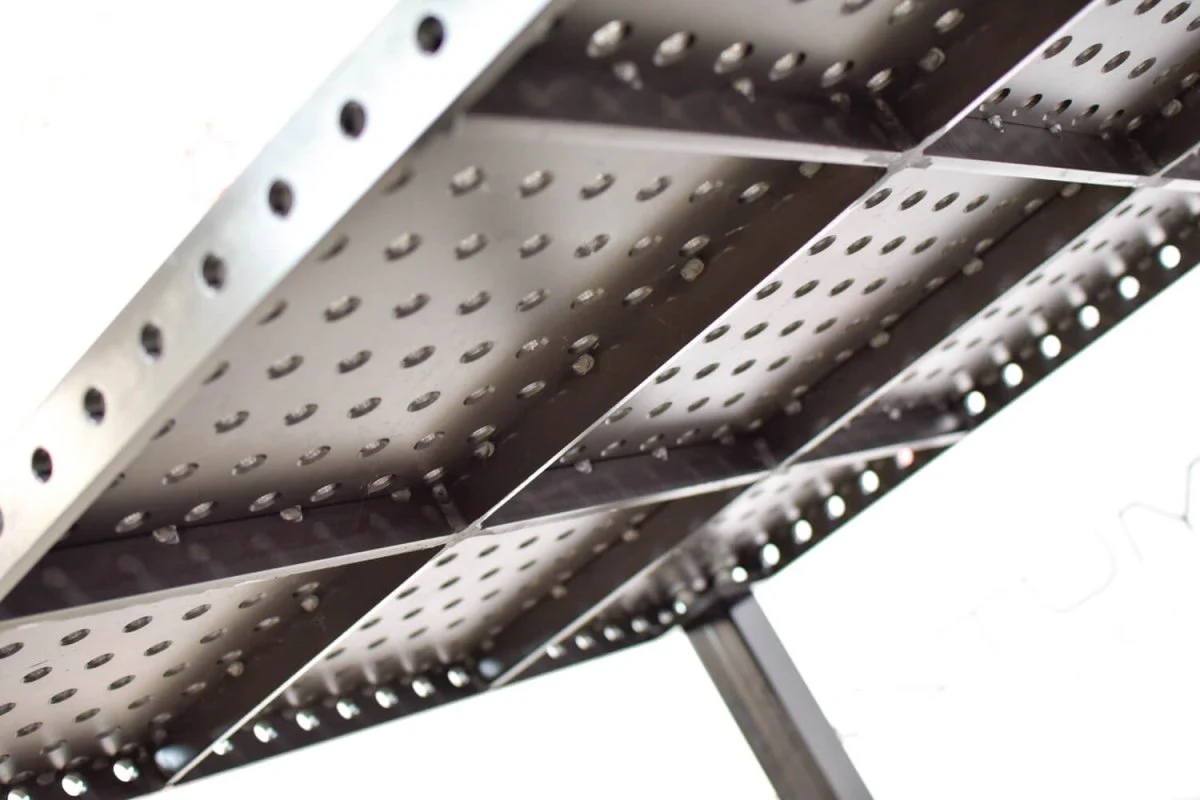

Product image 13

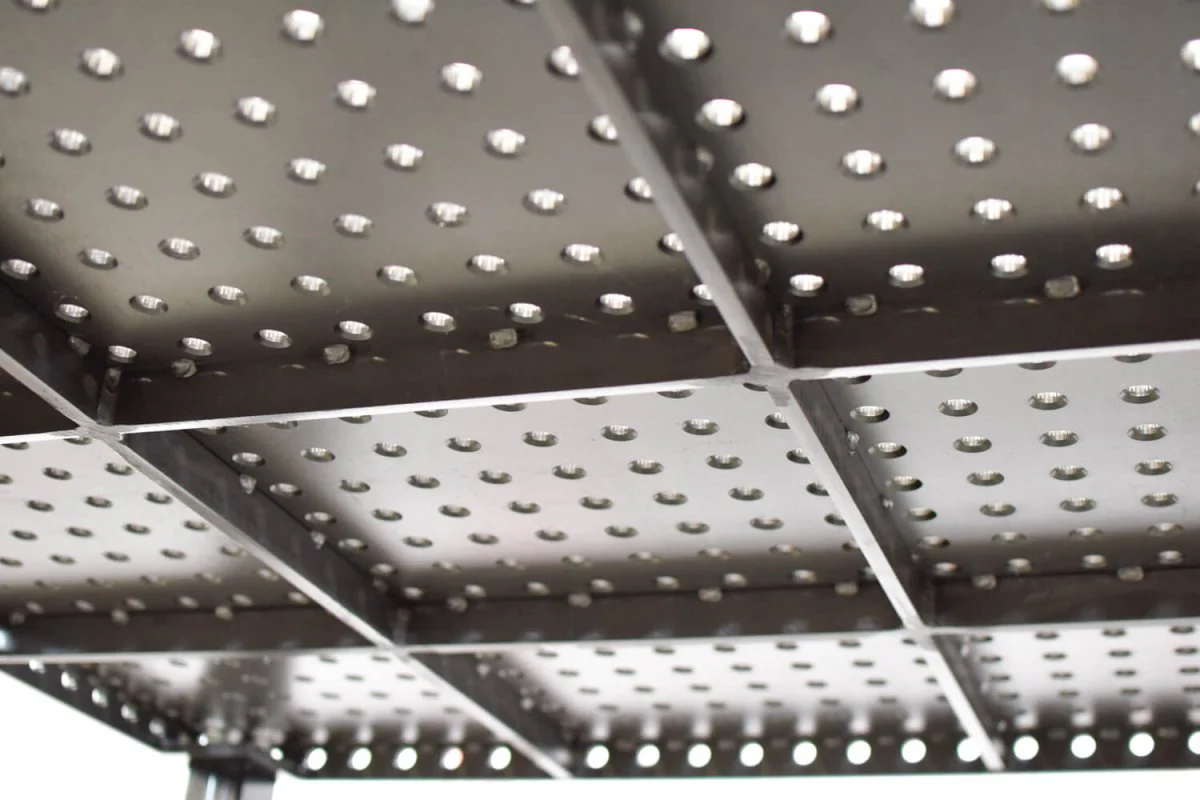

Product image 14
Product image 15

Description


(Image is of a Siegmund System 16 BASIC Series, Welding Table with a Siegmund Accessory Kit. These items are not included. This is being shown as an example.)


The System 16 Welding Table Series was created with Fine Detail Applications in Mind.

All System 16 Basic tables feature the latest upgrades in aesthetics, versatility, and durability.

Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.




  • The materials used are fundamental to the high level of hardness and long service life.
  • With a Siegmund® table, you will experience long-term savings, thanks to the high level of precision engineering, as well as the consistent superior quality.
  • Side surface of Professional Extreme 8.7 is made of specific basic material S355J2+N incl. plasma nitriding and BAR-coating.


Siegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.



Specs and Features

of the System 16 Basic Series Welding Tables

Specs & Features
of the System 16
BASIC Series
Welding Tables



Welding Table Specs and Features:

  • Overall Tabletop Size: 1,500x1000mm
  • Welding Table Series: System 16 Basic Series
  • Welding Table Material Thickness: Approx. 11.5-13 mm
  • Welding Table Material Type and Finish: High Quality S355J2+N Steel, Plasma Nitrided and BAR-Coated
  • Official Welding Table Part No.: 4-161035.P
  • Borehole: Ø 16mm
  • Grid: Grid lines in a distance of 50x50mm help you to arrange your accessories.
  • Approximate Table Weight: 537 lbs. / 244 kg.
  1. Boreholes on the surface are in a 50X50 mm Grid Configuration.
  2. Borehole Ø 16 mm
  3. Through-hardened tool steel X8.7 + Plasma nitration
  4. Material thickness approx. 11,5 – 13 mm
  5. M12-thread on 4 sides every 50 mm
  6. Rounded corners and edges


Welding Table Leg Options

Part Numbers, Specs and Pricing

Welding Table Leg Options
Part Numbers, Specs and Pricing



Siegmund Welding Table Leg Options Chart

Leg Type Item No. Capacity Per Leg Leg Height Table Height Cost Per Leg

1. Standard Leg

161856

2,200 lbs. / 1,000 kg

32" / 815 mm

33.4" / 850 mm

Included

2. Height Adjustable Leg

4-160877.XX

2,200 lbs. / 1,000 kg

21.6" - 37.4"/ 550-950 mm

23.6"-39.3"/ 600-1,000mm

$102

3. Leg with Casters and
Locking Brakes

4-161855.XX

440 lbs. / 200 kg

32"/ 815 mm

33.4"/ 850 mm

$114

4. Height Adjustable Leg
with Casters and Locking Brakes

4-160879.XX

440 lbs./ 200 kg

23.6"-35.4"/ 600-900 mm

25.5"-37.4"/ 650-950 mm

$169

5. Floor Anchoring Legs

4-160874.XX

2,200 lbs. / 1,000 kg

32" / 815 mm

33.4"/ 850 mm

$98


Siegmund System 16 Welding Table Leg Options - Full Specifications


1. Standard Siegmund Leg(s)

    • Item No.: 161856
    • Leg Height: 32" / 815mm
    • Table Height: 33.4" / 850mm
    • Fine Adjustment: 1.96" / 50mm
    • Capacity Per Table Leg: 2,200 lbs.
    • Cost Per Leg: $0 (Included with Welding Table as a Standard)
    • Cost Per 4 Leg Set: $0 (Included with Welding Table as a Standard)

2. Height Adjustable Siegmund Leg(s)

  • Item No.: 4-160877.XX
  • Leg Height (Adjustable): 21.65" - 37.4" / 550mm - 950mm
  • Table Height (Adjustable): 23.6" - 39.37" / 600mm - 1,000mm
  • Fine Adjustment: 1.57" / 40mm
  • Capacity Per Table Leg: 2,200 lbs.
  • Cost Per Leg: $102
  • Cost Per 4 Leg Set: $408

3. Siegmund Leg(s) with Casters and Locking Brakes

  • Item No.: 4-161855.XX
  • Leg Height: 32" / 815mm
  • Table Height: 33.4" / 850mm
  • Fine Adjustment: 1.18" / 30mm
  • Capacity Per Table Leg: 440 lbs.
  • Cost Per Leg: $114
  • Cost Per 4 Leg Set: $456

4. Height Adjustable Leg(s) with Casters and Locking Brakes

  • Item No.: 4-160879.XX
  • Leg Height (Adjustable): 23.6" - 35.4" / 600mm - 900mm
  • Table Height (Adjustable): 25.6" - 37.4" / 650mm - 950mm
  • Fine Adjustment: 1.18" / 30mm
  • Capacity Per Table Leg: 440 lbs.
  • Cost Per Leg: $169
  • Cost Per 4 Leg Set: $676

5. Siegmund Leg(s) for Floor Anchoring

    • Item No.: 4-160874.XX
    • Leg Height: 32" / 815mm
    • Table Height: 33.4" / 850mm
    • Fine Adjustment: 1.96" / 50mm
    • Capacity Per Table Leg: 2,200 lbs.
    • Cost Per Leg: $98
    • Cost Per 4 Leg Set: $392

System 16 Accessory Sets

The Most Popular Siegmund Accessory Bundles

System 16
Accessory Sets
The Most Popular Siegmund Accessory Bundles


Set 1.1 for System 16 (28 Piece) - 16mm Bored Hole Accessories (Item No. 4-163100.1) - Siegmund Welding Tables and Fixtures USA - A Division of Quantum Machinery Group

Sold out

Sold out
Set 3.1 for System 16 (72 Piece) - 16mm Bored Hole Accessories (Item No. 4-163300.1) - Siegmund Welding Tables and Fixtures USA - A Division of Quantum Machinery Group

Sold out

Sold out
Set 5.1 for System 16 (117 Piece) - 16mm Bored Hole Accessories (Item No. 4-163500.1) - Siegmund Welding Tables and Fixtures USA - A Division of Quantum Machinery Group

Sold out


Featured Siegmund Videos

of the System 16 Welding Tables

Featured Siegmund Videos
of the System 16 Welding Tables


Impact Test Standard Weld Table vs Siegmund Weld Table



Why Our Welding Tables are Plasma Nitrided



The Strength of a Siegmund Welding Table



"You Can Produce Everything..."


This Month's

Featured Siegmund Welders

This Month's
Featured Siegmund Welders


Greg from Red Beard's Garage

Red Beard’s Garage is world famous and has over 410,000+ Youtube Subscribers!
Red Beard (Greg) and his team builds all types of Go-Karts and definitely have a blast doing it - so be sure to follow their channel on Youtube.
Red Beard’s Garage solely trusts Quantum Machinery and Siegmund to supply and support all of their Welding Table and Fixturing needs!
(There is bound to be something that will “tickle your fancy”! )




Jeff Lutz (Lutz Race Cars) from Street Outlaws

Jeff Lutz (Lutzs Race Cars) from Street Outlaws is world famous and has over 474,000+ Instagram Followers and over 467,000+ Facebook Fans and is currently filming with his Siegmund table on the Discover Channel! When he received his Siegmund Welding Table and Accessories from us, he had nothing but the best things to say, "Wow it is amazing!" and after spending a few weeks with it, Jeff wrote on his instagram that his Siegmund Welding Table makes fixturing everything so much easier for him and his team!




Here is a video of Jeff Lutz in a drag race, for your own entertainment!


Contact a Siegmund Expert

Feel free to contact us today to place an order or let us know
if you have any questions about any Siegmund's Products.

Contact a Siegmund Expert
Feel free to contact us today to place an order or let us know if you have any questions about any Siegmund's Products.

Contact our team of Factory Trained, In-House Siegmund U.S.A. Experts for all of your Siegmund Inquiries and questions! You can also place your order online or over the phone.

Phone: (704)703-9400
Email: [email protected]

Contact our team of Factory Trained, In-House Siegmund U.S.A. Experts for all of your Siegmund Inquiries and questions! You can also place your order online or over the phone.

Phone: (704)703-9400      Email: [email protected]


If you would like for us to contact you, simply fill out the form below and one of our Siegmund Experts will be in contact with you shortly.

Thanks!
This field is required
This field is required
This field is required
This field is required
This field is required
This field is required
