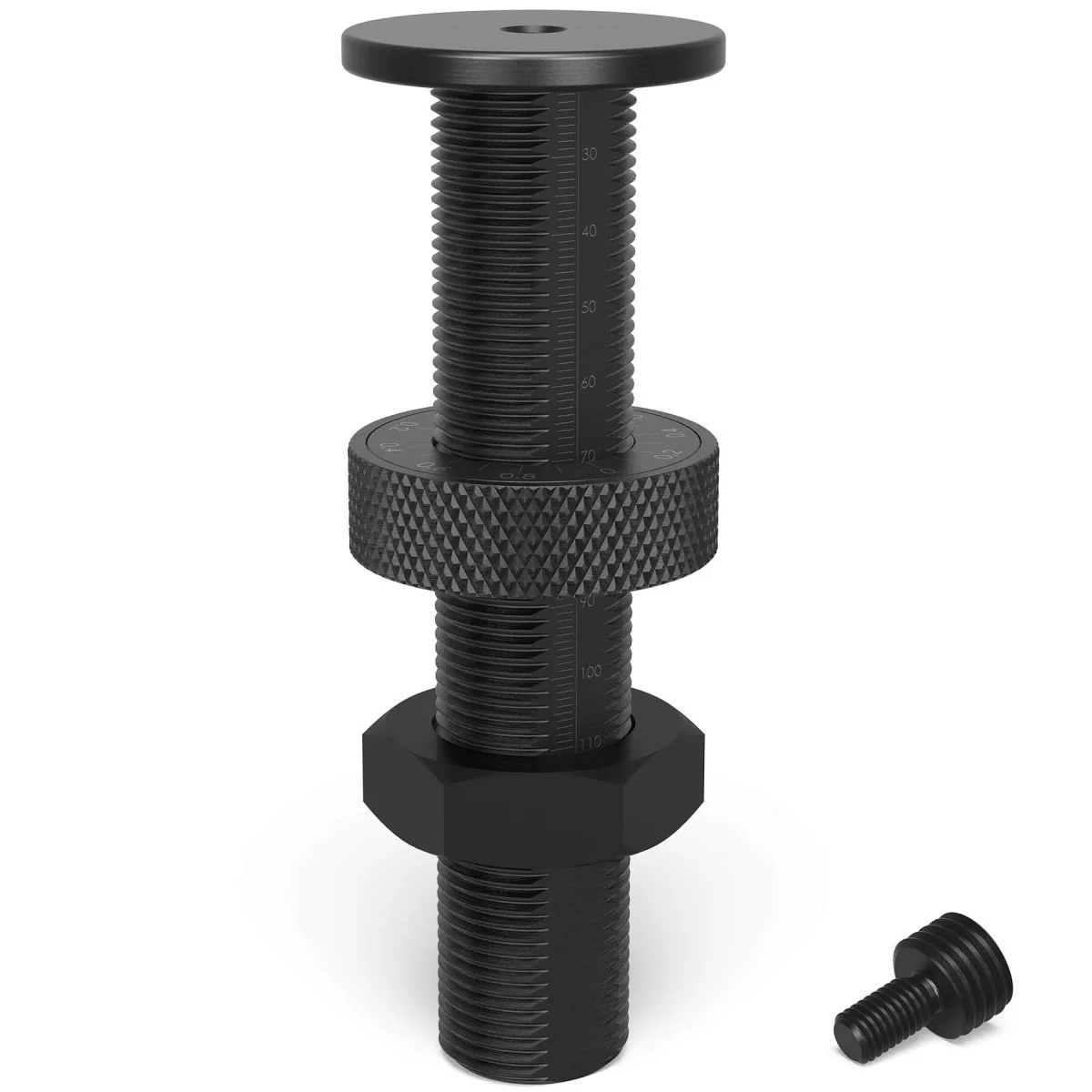

2-280824: Height Adjustable Support with Scale (Burnished)

The Siegmund height adjustable support with scale provides precise, stable positioning for fixturing and accessory mounting. Its integrated scale and locknut system allow fine, repeatable adjustments with 1mm accuracy across a 20–105mm (0.79–4.13" Inches) range. Built from burnished steel, it offers durability and strength for demanding fabrication environments.

- It delivers accurate, stepless height adjustment from 20–105mm.
- Locknut and ring ensure secure and repeatable settings.
- Burnished steel construction offers hardness and long service life.
- Can be positioned in all Siegmund System 28 boreholes.

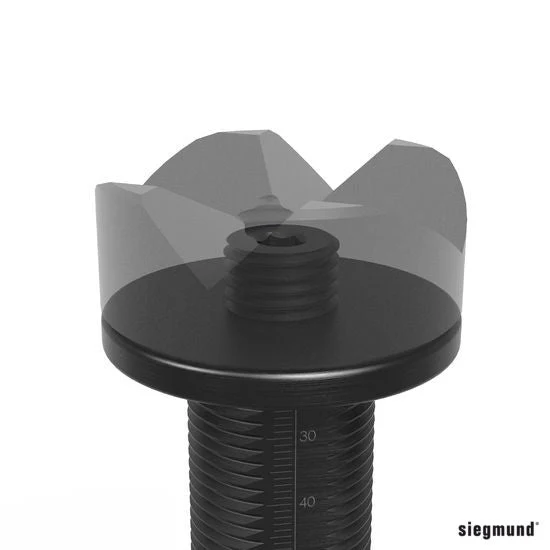

- Includes set screw for connecting with Siegmund prisms.

Key Features:
- Provides accurate height adjustment with 1mm precision.
- Durable burnished finish resists wear under heavy use.
- Locknut system ensures stability and repeatability.
- Mounts securely in all System 28 boreholes.
- Includes connecting screw for compatibility with prisms.

Specifications:
- System: Siegmund System 28 Metric Series
- Height Range: 20–105mm (0.79–4.13" Inches)
- Total Height: 144mm (5.67" Inches)
- Diameter: 50mm (1.97" Inches)
- Weight: 1.92 lbs. (0.87 kg.)
- Material: Burnished Steel

Common Uses:

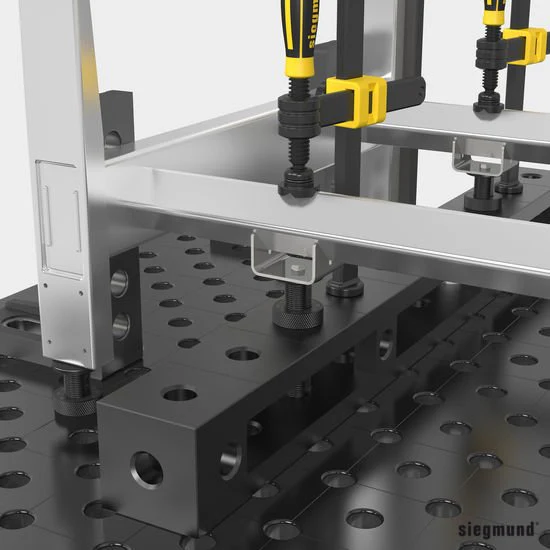

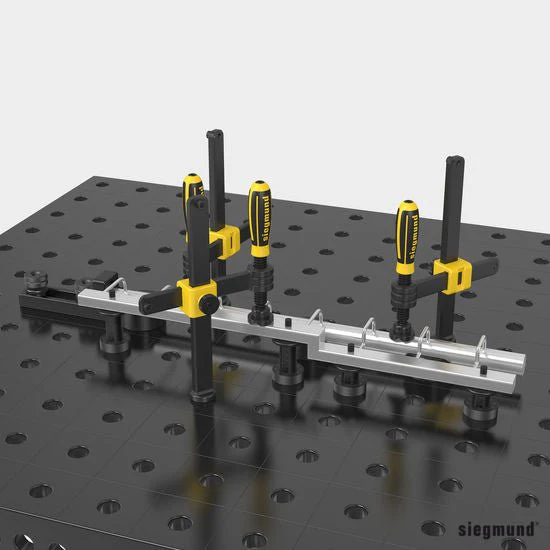

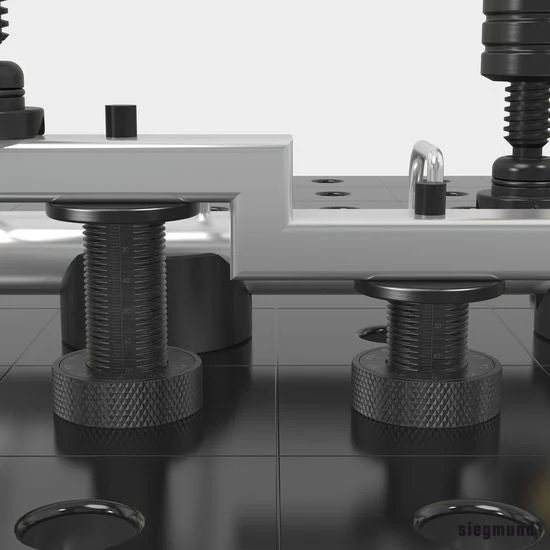

This adjustable support ensures precise workpiece positioning in welding and fabrication setups. Fabricators use it to fine-tune fixture heights, align accessories, and achieve consistent setups across production runs. Its burnished construction and scale accuracy make it a reliable component for precision fixturing on Siegmund System 28 tables.
