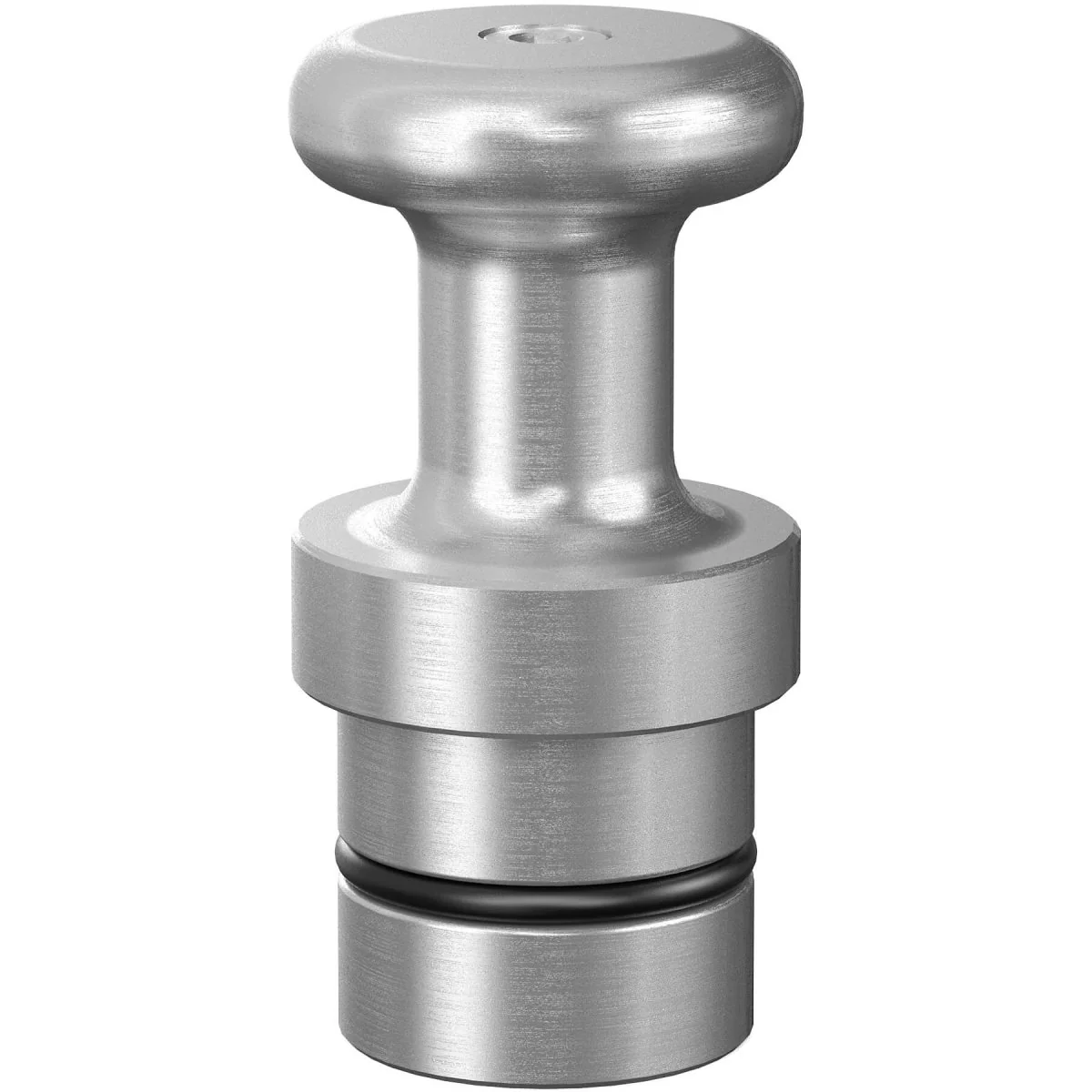

2-280740: 68mm Magnetic Clamping Bolt (Aluminum)

Key Features:
- Enables quick clamping without bolts or tools.
- Lightweight aluminum construction reduces handling effort.
- Magnetic hold secures pressure-sensitive components safely.
- Ideal for thin sheet metal and housings where counter holding is not possible.

Specifications:
- Item No.: 2-280740
- System: Siegmund System 28 Metric Series
- Length: 68mm (2.68" Inches)
- Shaft Length: 25mm (0.98" Inches)
- Weight: 0.20 lbs. (0.09 kg.)
- Max. Holding Force: 0.18 kN (40.5 lbf.)
- Material: Aluminum

Common Uses:

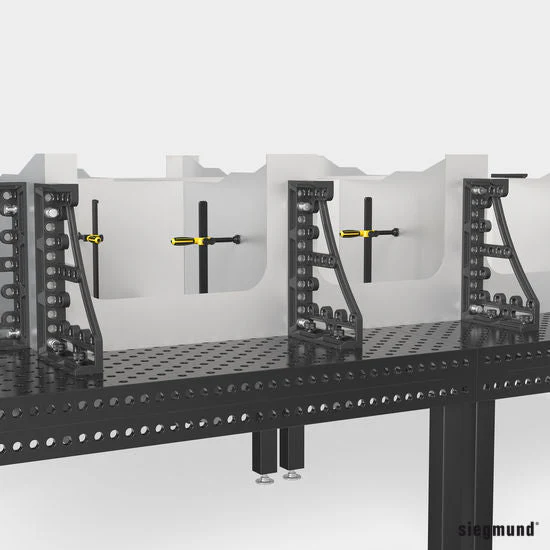

This bolt is used to quickly secure pressure-sensitive or lightweight components such as sheet metal, enclosures, or housings where counter holding is not possible. Its magnetic clamping action ensures safe, efficient handling without tools.



The Magnetic Clamping Bolt 68mm Aluminum offers a fast and tool-free solution for securing pressure-sensitive or lightweight components. Its aluminum construction makes it easy to handle while reducing risk of damage to delicate parts such as sheet metal.

- The 68mm (2.68" Inches) length provides reliable positioning.
- 25mm (0.98" Inches) shaft length ensures stable fit.
- Aluminum body reduces weight and protects thin materials.
- Magnetic holding force of 0.18 kN (40.5 lbf.) keeps parts secure.
- Burnished surface improves longevity and wear resistance.
