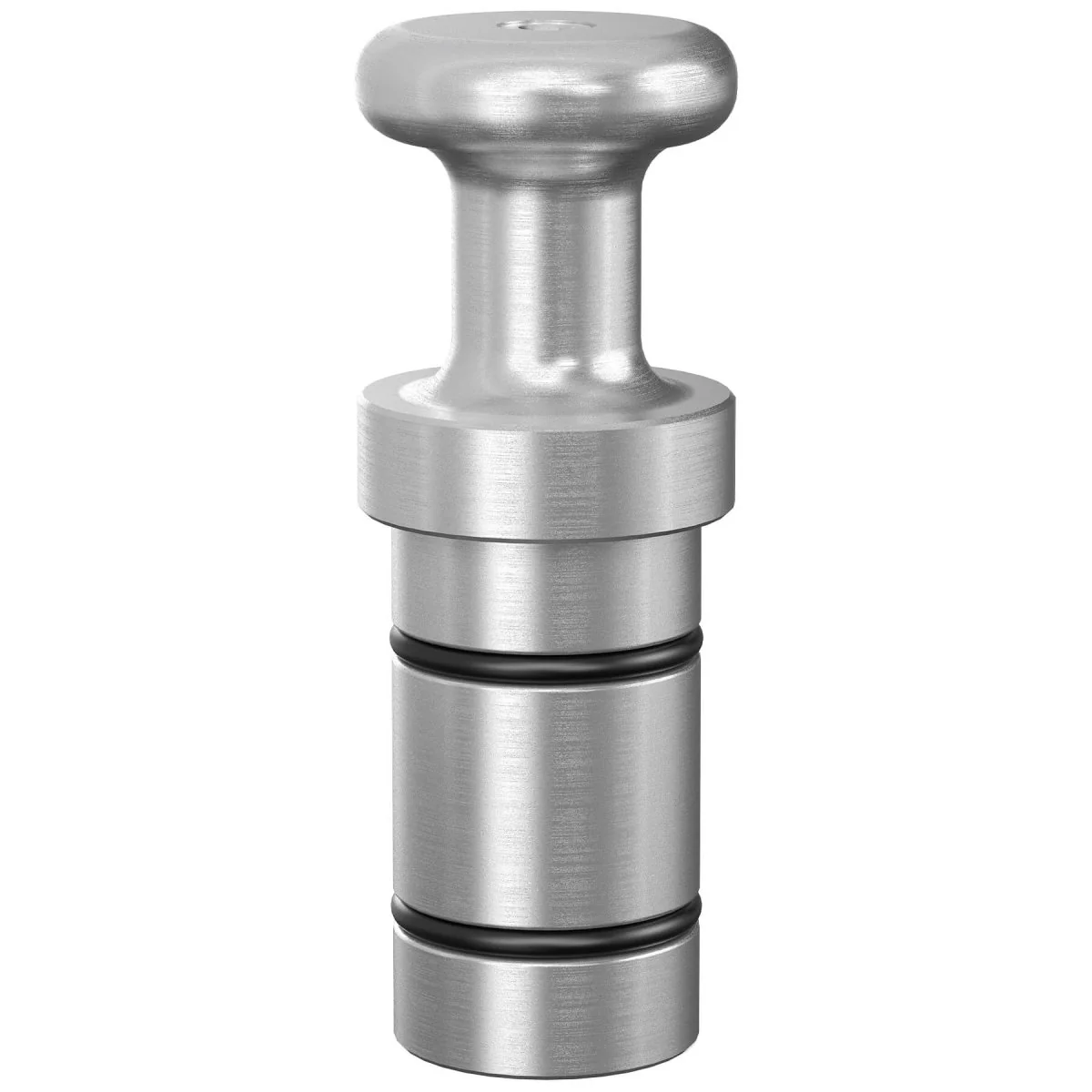

2-280740.1: 93mm Magnetic Clamping Bolt (Aluminum)

Key Features:
- Provides quick clamping without bolts or tools.
- Lightweight aluminum reduces operator strain.
- Magnetic hold secures pressure-sensitive parts safely.
- Ideal for thin sheet metal or enclosed components.

Specifications:
- Item No.: 2-280740.1
- System: Siegmund System 28 Metric Series
- Length: 93mm (3.66" Inches)
- Shaft Length: 50mm (1.97" Inches)
- Weight: 0.29 lbs. (0.13 kg.)
- Max. Holding Force: 0.18 kN (40.5 lbf.)
- Material: Aluminum

Common Uses:
This bolt is used for quick and secure clamping of sheet metal, housings, and other lightweight components where counter holding is not possible. Fabricators benefit from its magnetic hold, which eliminates tool use and reduces setup time while ensuring delicate parts remain protected.



The Magnetic Clamping Bolt 93mm Aluminum provides fast, tool-free clamping for pressure-sensitive or lightweight components. Its aluminum construction keeps weight low while protecting delicate parts, and the magnetic hold ensures secure positioning even without counter holding.

- The 93mm (3.66" Inches) length provides extended reach for setup needs.
- 50mm (1.97" Inches) shaft length ensures stability.
- Lightweight aluminum build reduces handling effort.
- Magnetic holding force of 0.18 kN (40.5 lbf.) keeps parts in place.
- Well-suited for sheet metal housings or closed enclosures.
