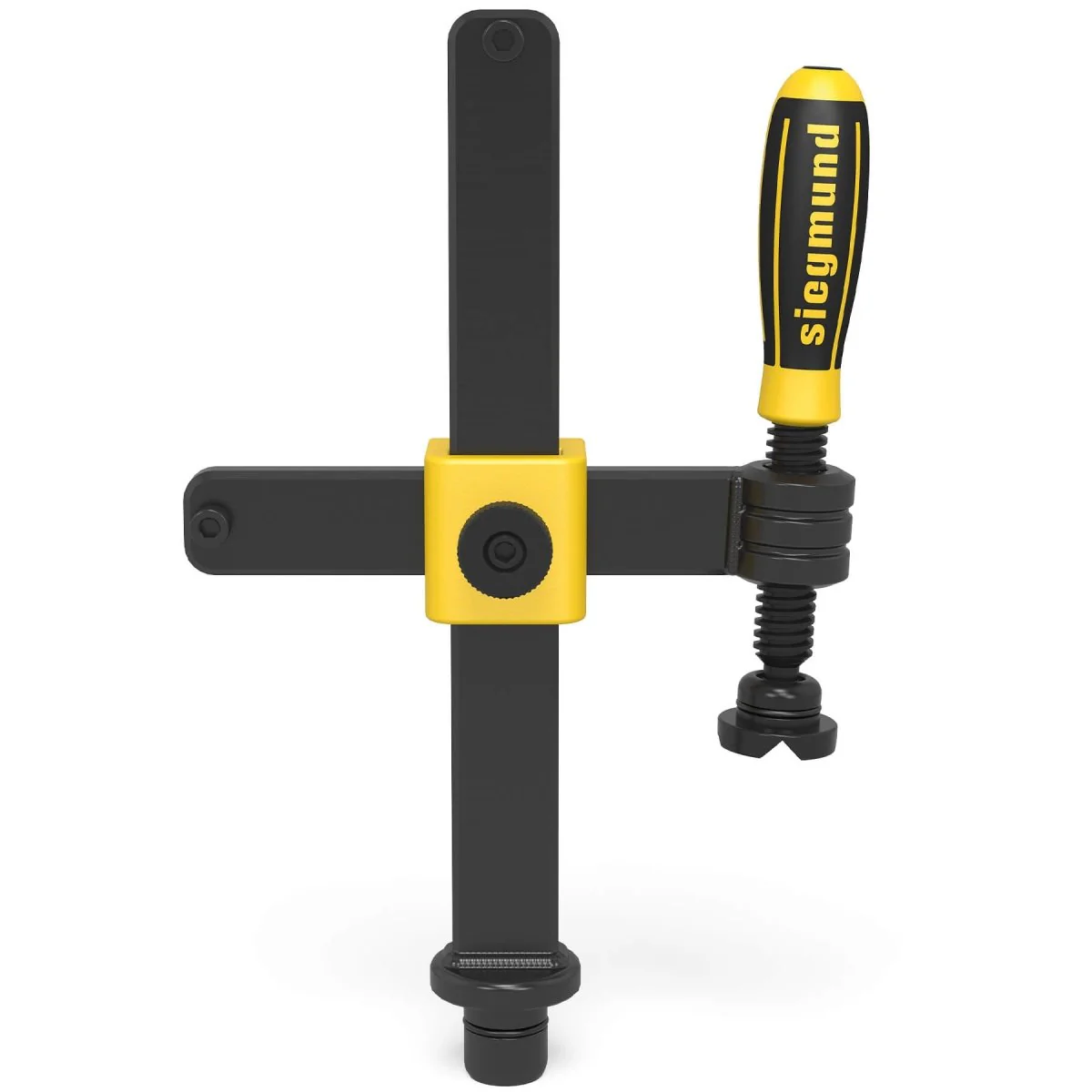

The Siegmund Professional Screw Clamp XL is built for heavy-duty applications requiring maximum strength and stability. With reinforced bars and nitrided steel construction, it delivers powerful clamping force and long service life in demanding shop environments.
- Provides clamping width of 220mm (8.66" Inches) and height of 310mm (12.20" Inches).
- Generates up to 7 kN (1574.0 lbf.) of clamping force for high-strength setups.
- Nitrided finish offers outstanding durability and wear protection.
- Flat bars measure 35x14mm for added rigidity and stability.
- Torque-adjustable handle ensures precise, repeatable clamping pressure.
- Weighs 7.76 lbs. (3.52 kg.), designed for heavy-duty shop performance.
Key Features:
- XL design delivers higher clamping force for demanding applications.
- Nitrided finish enhances durability under continuous use.
- Reinforced bar construction provides added stability.
- Torque wrench compatibility ensures precision control.
Specifications:
- Item No.: 2-280612.N
- System: Siegmund System 28 Metric Series
- Width: 220mm (8.66" Inches)
- Height: 310mm (12.20" Inches)
- Weight: 7.76 lbs. (3.52 kg.)
- Max. Clamping Force: 7 kN (1574.0 lbf.)
- Finish: Nitrided Steel
Common Uses:

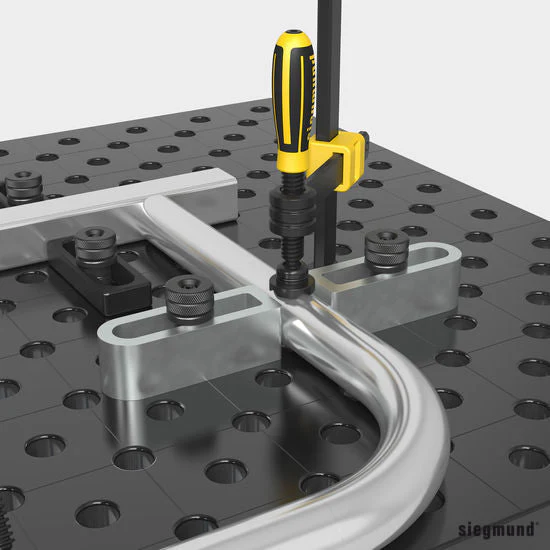

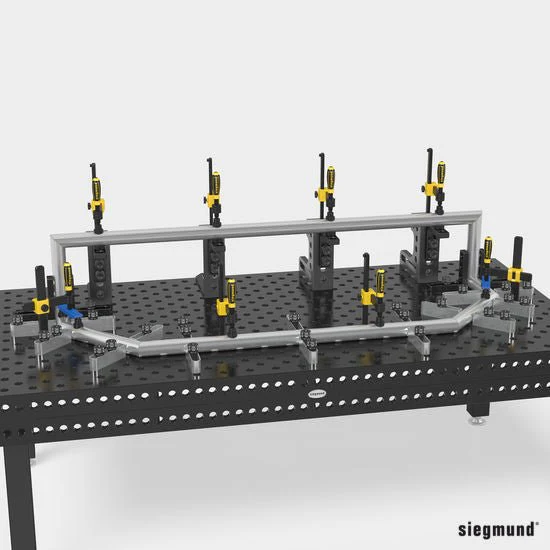

The Professional Screw Clamp XL provides maximum holding strength and precision in Siegmund System 28 setups. Its reinforced construction and nitrided finish ensure long-lasting durability, while the torque-adjustable handle delivers controlled pressure. This clamp is ideal for large workpieces, heavy welding assemblies, and any task demanding extra force and stability.
Parts Used to Create the Siegmund Item No. 2-280612.N:
(x1) 2-280639.N
(x1) 2-280638.N
(x1) 2-280617.1
(x1) 2-280662.2
(x1) 2-280618.N
(x1) 2-280634.N
(x1) 2-280657.1.N
