2-280550.1: Short Hexagonal Connecting Bolt (Burnished)

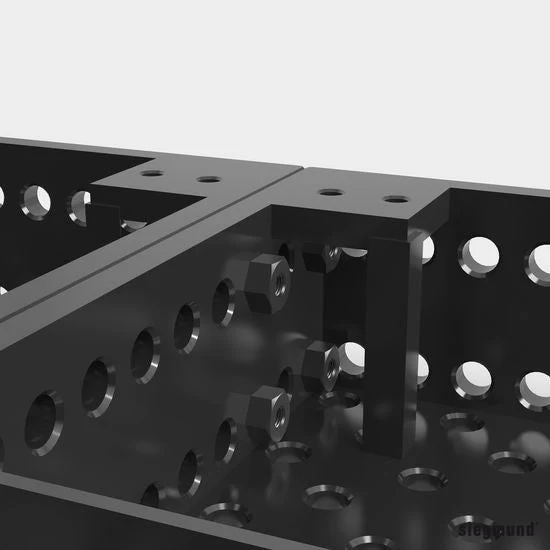

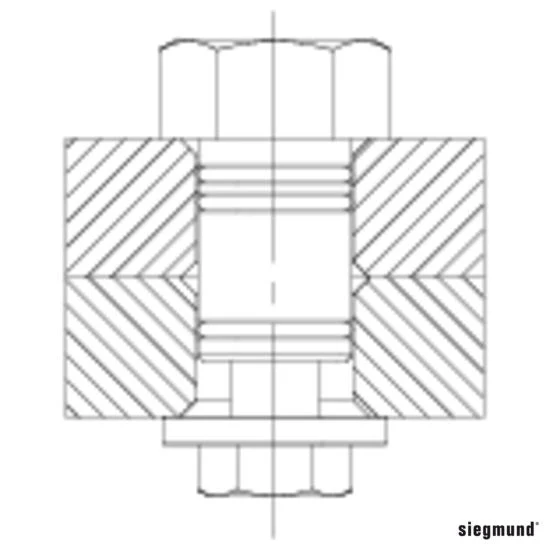

The Siegmund Short Hexagonal Connecting Bolt was specially designed as a fixed long term connection for system bore holes. The self-centering clamping bolt simplifies assembly.

The Connecting Bolt is clamped with a hex wrench 36 and 24.

Specs and Features:
- Item No. 2-280550.1
- Burnished
- For Connecting 2 Siegmund Components
- With Hexagon Socket
- Length: 58mm (2.83'')
- Diameter: 28mm (1.10'')
- Shearing Force: 200kN
- Tightening Torque Steel: 215Nm
- Tensile Force: 20kN
- Weight: 0.88 Ibs.
