The Siegmund 2-280360.2.P 500x400x200mm Square U-Shape provides fabricators with a stable, heavy-duty riser block solution for extending and connecting Siegmund System 28 Metric Series welding tables. Its precision-machined surfaces and plasma nitrided finish deliver long-term durability and protection against wear. This component enhances flexibility in both vertical and horizontal setups, saving time while ensuring accuracy.
- Grid layout with 100mm spacing supports quick, repeatable alignment.
- Plasma nitrided coating resists corrosion, weld spatter, and abrasion.
- Five-sided boreholes expand clamping and fixturing versatility.
- Ideal for connecting multiple tables or building elevated work surfaces.
- Heavy-duty 25mm material thickness provides maximum rigidity.
- Supports large assemblies with a weight of 235.9 lbs. (107 kg.).
Key Features:
- Durable plasma nitrided surface for long-lasting wear protection.
- Multiple connection and clamping options from five-sided boreholes.
- Compatible with Siegmund System 28 Metric Series welding tables.
- Robust design ensures stability in large and heavy work setups.
- 100mm grid spacing delivers fast, repeatable orientation.
Specifications:
- Series: Siegmund System 28 Metric Series
- Length: 500mm (19.69" Inches)
- Width: 400mm (15.75" Inches)
- Height: 200mm (7.87" Inches)
- Material Thickness: 25mm (0.98" Inches)
- Weight: 235.9 lbs. (107 kg.)
Common Uses:

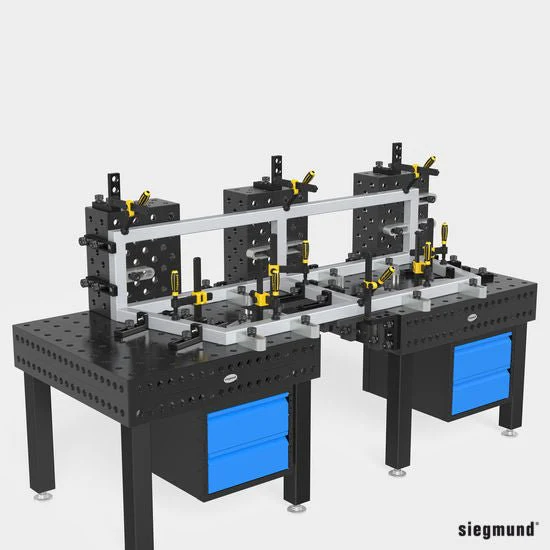

The 500x400x200mm Square U-Shape is used as a riser block to extend Siegmund System 28 Metric Series tables or connect multiple tables into larger workstations. It provides stable vertical positioning for fixtures and supports large assemblies with rigid accuracy. Shops rely on it to expand working space and maximize table system versatility without compromising precision.
