2-220165.N: 500mm G Stop and Clamping Square with Right Rotation Angle (Nitrided)

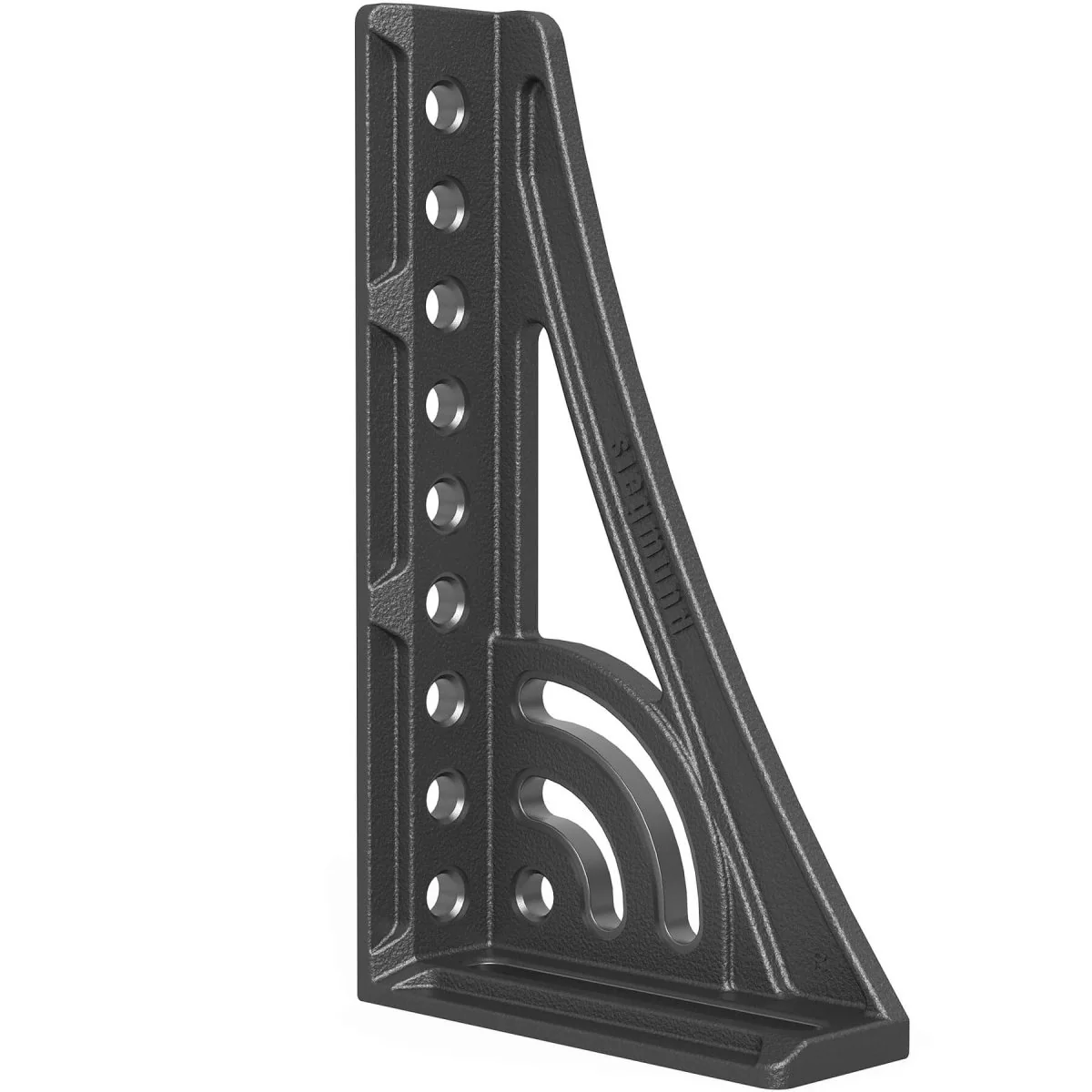

The Siegmund Stop and Clamping Square 500 G with Rotation Angle Right Nitrided delivers superior precision and rigidity for advanced fabrication and assembly setups. Its distinctive curved rib design reinforces the structure for maximum load capacity while maintaining dimensional accuracy. This square can be set in both fixed and adjustable configurations using its system of boreholes and elongated slot, making it suitable for use as a 90° stop, heavy-duty clamping fixture, or table extension. Built from GGG40 ductile cast iron and plasma-nitrided for durability, it ensures long-term strength and corrosion resistance.
- Provides stable, repeatable 90° positioning for large components.
- Curved reinforcement geometry increases stiffness and accuracy.
- Can serve as a stop, support, or table extension.
- Manufactured from GGG40 ductile cast iron for strength and vibration damping.
- Nitrided surface delivers hardness and long-term wear protection.
- Stop positioned on the right; recommended for use as a matched pair.
Key Features:
- Heavy-duty construction ideal for large and complex setups.
- Dual functionality — adjustable or fixed stop configurations.
- Precision fine scale for accurate and repeatable alignment.
- Nitrided finish enhances durability and corrosion resistance.
- Fully compatible with Siegmund System 22 Metric Series tables and accessories.
Specifications:
- Item No.: 2-220165.N
- Series: Siegmund System 22 Metric Series
- Length: 276mm (10.87" Inches)
- Width: 95mm (3.74" Inches)
- Height: 500mm (19.69" Inches)
- Material Thickness: 20mm (0.79" Inches)
- Weight: 25.57 lbs. (11.6 kg.)
- Material: GGG40 Ductile Cast Iron (Nitrided)
- Finish: Plasma Nitrided Hardened Surface
- Stop Orientation: Right Side
Common Uses:

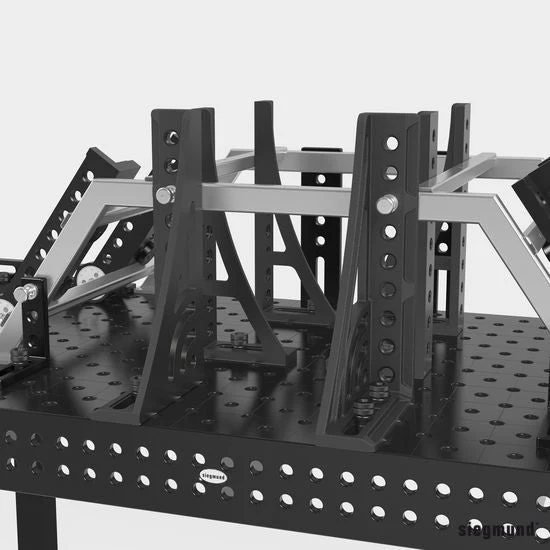

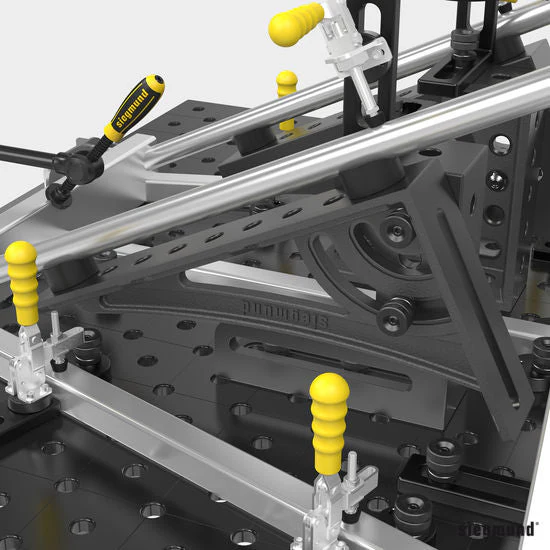

The Stop and Clamping Square 500 G with Rotation Angle Right is used for high-precision welding, fabrication, and assembly of large or heavy workpieces. It offers rigid, stable support for vertical and horizontal setups, functioning as a table extension or fixed clamping element. Its nitrided cast-iron structure ensures lasting dimensional accuracy and consistent performance in demanding shop environments.
