The Siegmund Stop and Clamping Square 300 G is a heavy-duty fixture element engineered for strength, precision, and versatility. Constructed from high-quality GGG40 ductile cast iron with a plasma-nitrided finish, it provides both fixed and adjustable positioning options through its system of boreholes and elongated slot. This square serves as a rigid right-angle reference or as an extension of the table surface, maintaining precise alignment even under heavy loads.
- Provides both fixed and variable positioning with multiple boreholes and elongated slot.
- Acts as a strong, stable 90° reference or table extension.
- Cast from GGG40 ductile iron for maximum rigidity and vibration resistance.
- Nitrided surface ensures exceptional wear and corrosion protection.
- Ideal for precise alignment of heavy components or large assemblies.
- Stop positioned on the left for consistent fixturing orientation.
Key Features:
- Combines the stability of a fixed square with the flexibility of an adjustable fixture.
- High-strength GGG40 ductile cast iron delivers dimensional stability under load.
- Nitrided finish increases hardness and long-term durability.
- Accurate machining ensures perfect right-angle alignment.
- Compatible with all Siegmund System 22 Metric Series tables and tooling.
Specifications:
- Item No.: 2-220152.N
- Series: Siegmund System 22 Metric Series
- Length: 200mm (7.87" Inches)
- Width: 75mm (2.95" Inches)
- Height: 300mm (11.81" Inches)
- Material Thickness: 20mm (0.79" Inches)
- Weight: 12.57 lbs. (5.7 kg.)
- Material: GGG40 Ductile Cast Iron (Nitrided)
- Finish: Plasma Nitrided Hardened Surface
- Stop Orientation: Left Side
Common Uses:

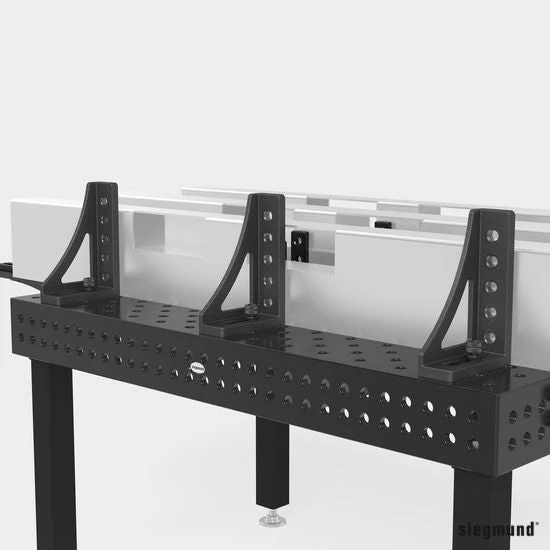

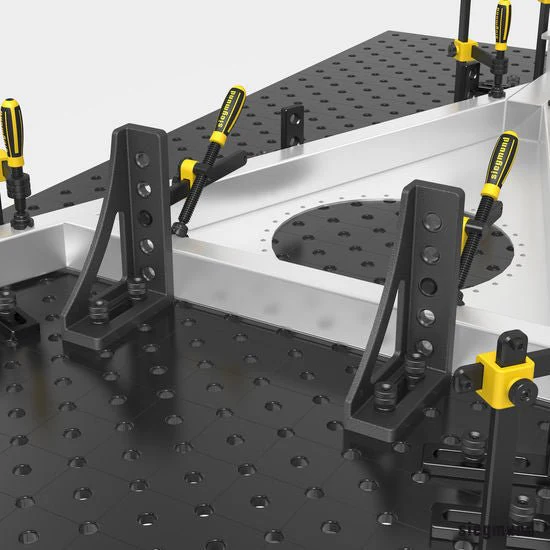

The Stop and Clamping Square 300 G is used for high-precision right-angle positioning, table extensions, or as a stable support for large, heavy components. Its rigid cast-iron body and nitrided finish provide unmatched accuracy, strength, and wear resistance, making it ideal for demanding fabrication and welding setups in professional environments.
