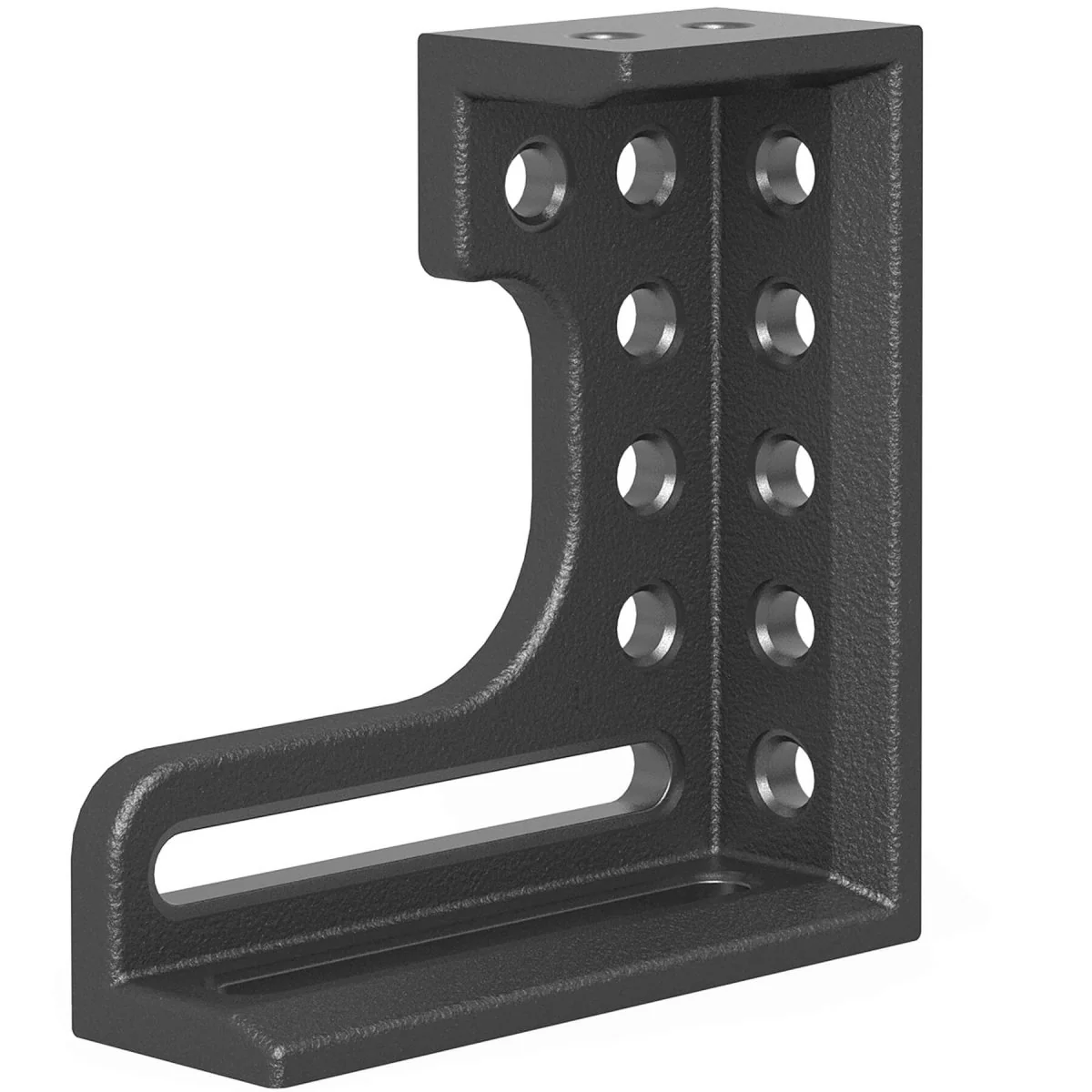

The Siegmund Stop and Clamping Square 300 GK Left Nitrided delivers heavy-duty stability and precision for demanding fabrication setups. Designed for large, heavy parts, this three-dimensional square provides multiple clamping options through its system boreholes and elongated slot. It can function as both a stop and a table extension, enabling precise, rigid positioning. Cast from high-strength GGG40 ductile iron and plasma-nitrided for durability, it maintains exceptional dimensional accuracy and resistance to distortion under high load.
- Offers robust three-dimensional clamping versatility for large components.
- Functions as both a stop and an extension of the table surface.
- Equipped with boreholes and elongated slot for adjustable or fixed setups.
- Precision fine scale ensures repeatable positioning and alignment.
- GGG40 ductile cast iron construction guarantees strength and vibration damping.
- Stop positioned on the left; ordering in pairs is recommended for balanced setups.
Key Features:
- Delivers high rigidity and stability for heavy-duty applications.
- Elongated slot and multiple boreholes offer maximum clamping flexibility.
- Nitrided finish provides superior surface hardness and wear resistance.
- Accurate fine scale markings support repeatable setups.
- Compatible with all Siegmund System 22 Metric Series tables and tooling.
Specifications:
- Item No.: 2-220124.N
- Series: Siegmund System 22 Metric Series
- Length: 280mm (11.02" Inches)
- Width: 95mm (3.74" Inches)
- Height: 300mm (11.81" Inches)
- Material Thickness: 20mm (0.79" Inches)
- Weight: 25.35 lbs. (11.5 kg.)
- Material: GGG40 Ductile Cast Iron (Nitrided)
- Finish: Plasma Nitrided Hardened Surface
- Stop Orientation: Left Side
- Scale: Standard with Fine Graduations
Common Uses:

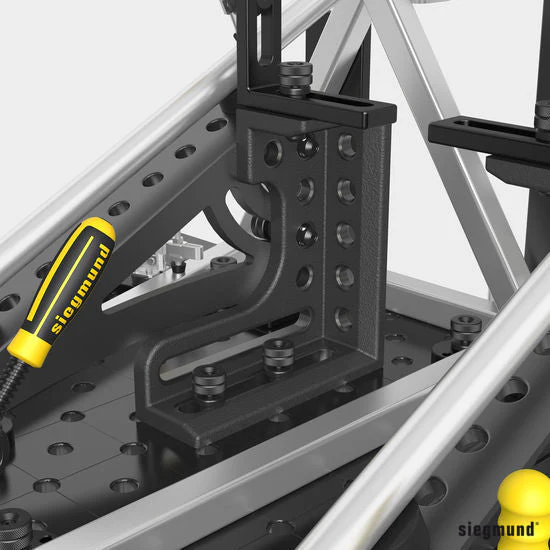

The Stop and Clamping Square 300 GK Left is designed for large-scale welding, fabrication, and assembly operations requiring rigid, repeatable positioning. It supports heavy parts securely, serving as both a 90° stop and a table extension. Its nitrided cast-iron body provides lasting precision and high load-bearing strength in high-performance shop environments.
