2-160560.N: Short Connecting Bolt (Nitrided)

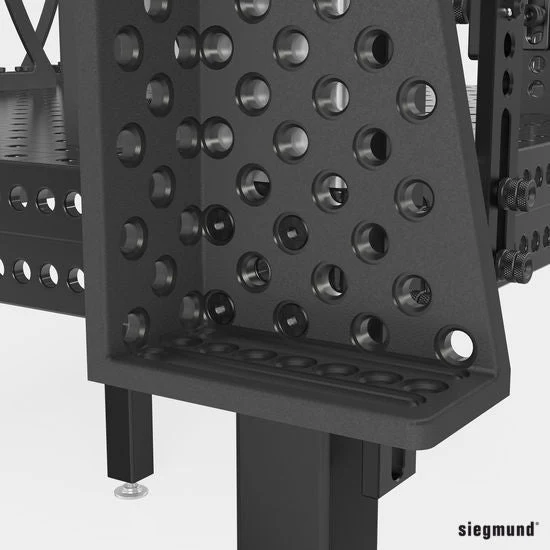

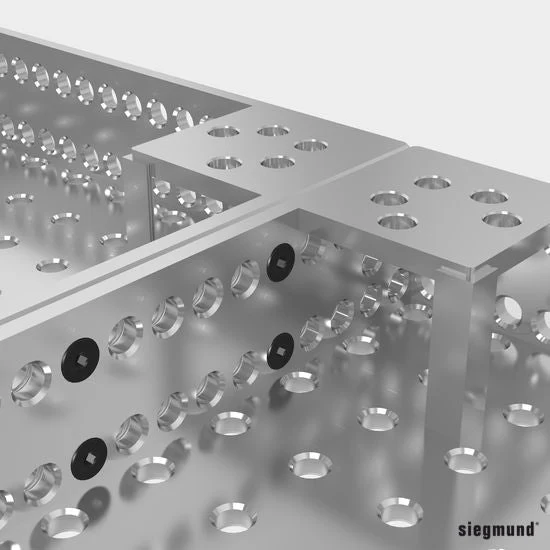

The Siegmund Connecting Bolt, especially designed as a fixed long-term connection of large Siegmund Elements, e.g. tables or U-shaped squares.Ā The countersunk hexagon socket and the ability of the clamping bolt to center itself, enable easy assembly. The flat head and the flat bolt contain a hexagon socket for clamping.
This bolt is used to connect 2 Siegmund Components together.
The connecting bolt provides a sturdy screw Connection. The Connecting Bolt should not be used in oblong holes.
Specs and Features:
- Item No. 2-160560.N
- Nitrided
- With Hexagon Socket
- Length: 25mm (0.98'')
- Diameter: 16mm (0.63'')
- Shearing Force: 50kN
- Tightening Torque Steel: 15Nm
- Tensile Force: 4kN
- Weight: 0.06 Ibs.
Original: $35.00
-65%$35.00
$12.25
Description
The Siegmund Connecting Bolt, especially designed as a fixed long-term connection of large Siegmund Elements, e.g. tables or U-shaped squares.Ā The countersunk hexagon socket and the ability of the clamping bolt to center itself, enable easy assembly. The flat head and the flat bolt contain a hexagon socket for clamping.
This bolt is used to connect 2 Siegmund Components together.
The connecting bolt provides a sturdy screw Connection. The Connecting Bolt should not be used in oblong holes.
Specs and Features:
- Item No. 2-160560.N
- Nitrided
- With Hexagon Socket
- Length: 25mm (0.98'')
- Diameter: 16mm (0.63'')
- Shearing Force: 50kN
- Tightening Torque Steel: 15Nm
- Tensile Force: 4kN
- Weight: 0.06 Ibs.
