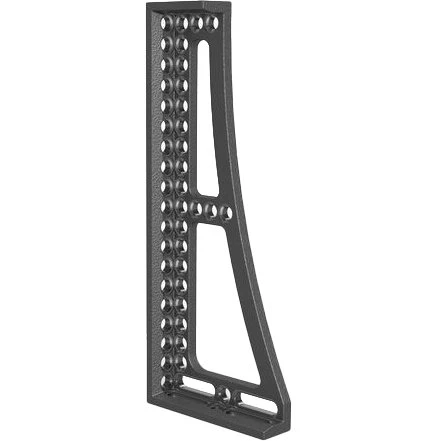

2-160136.N: 500 GK Right Stop and Clamping Square (Nitrided)

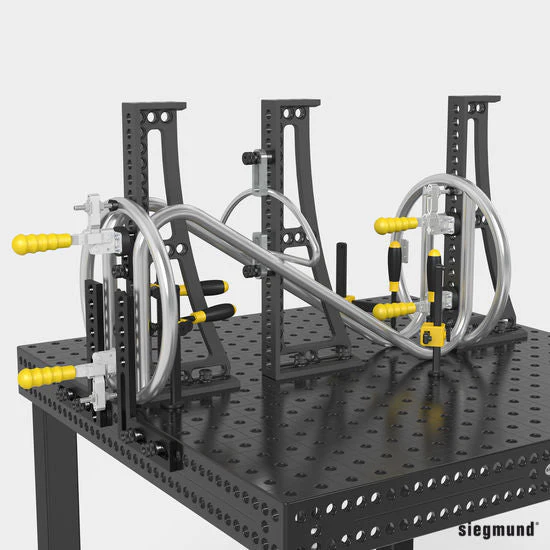

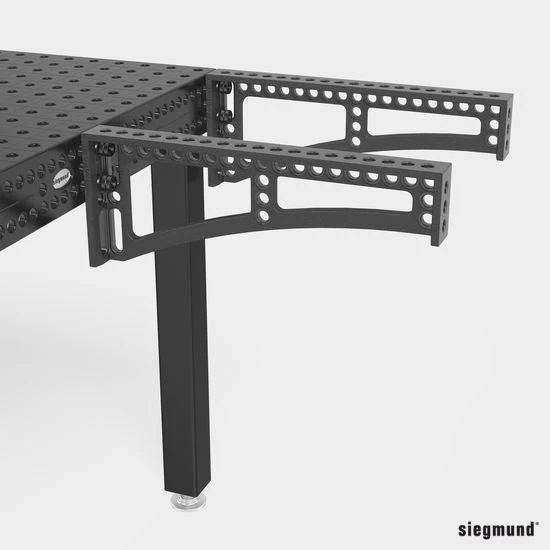

The Siegmund 500 GK Right Stop and Clamping Square opens up a multitude of clamping options, due to its three-dimensionality. It was specifically designed for heavy parts. It serves both as a stop as well as a table extension. In order to achieve maximum stability, the Stop and Clamping Square is manufactured of GGG40 ductile cast iron. Ordering in pairs is recommended.

Specs and Features:
- Item No. 2-160136.N
- Nitrided
- Stop on Right
- Standard mm Fine Scale
- Length: 195mm (7.67'')
- Width: 49mm (1.92'')
- Height: 500mm (19.68'')
- Material Thickness: 14mm (0.55'')
- Weight: 11.68 Ibs.
